158-S40 Tube clamps square

To view the current prices, you must first log in or create a new account.

Description

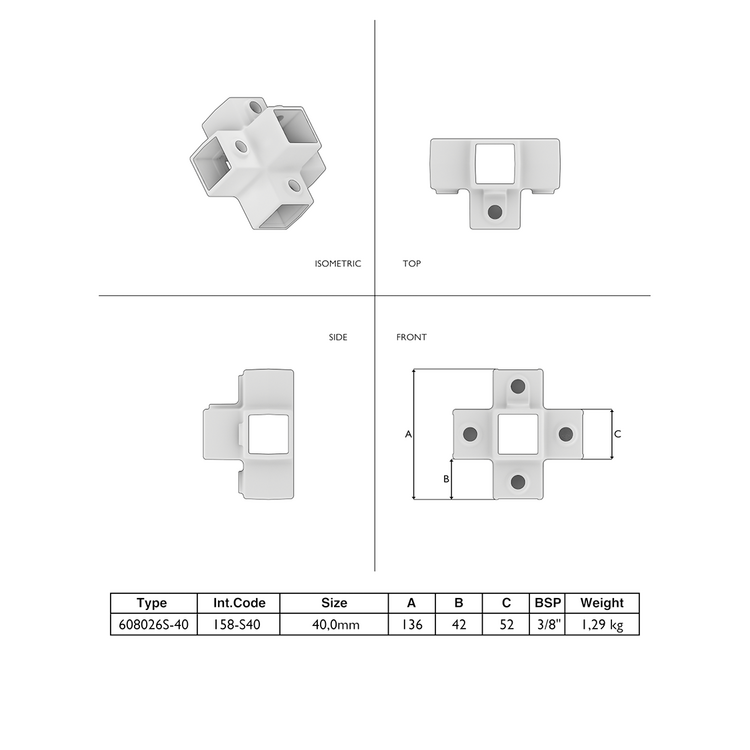

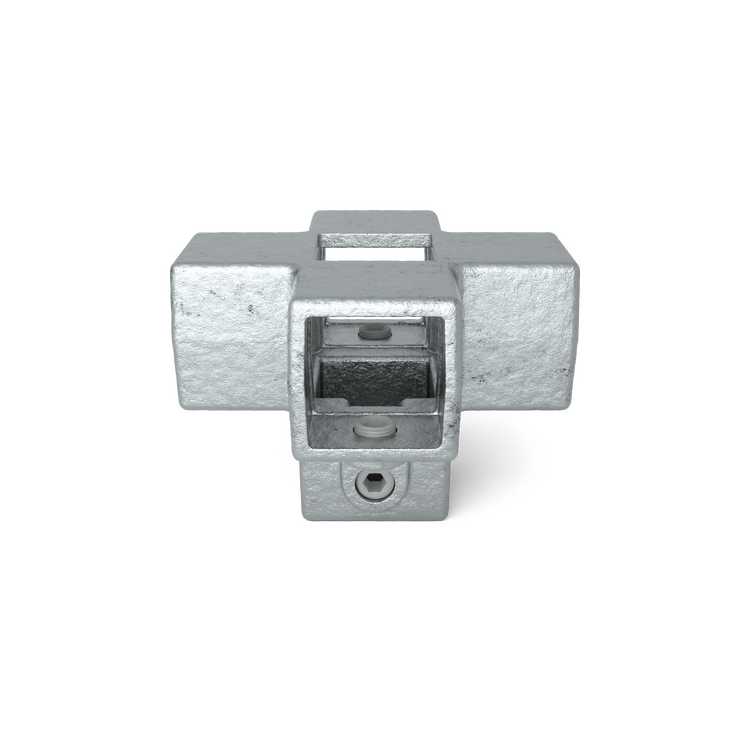

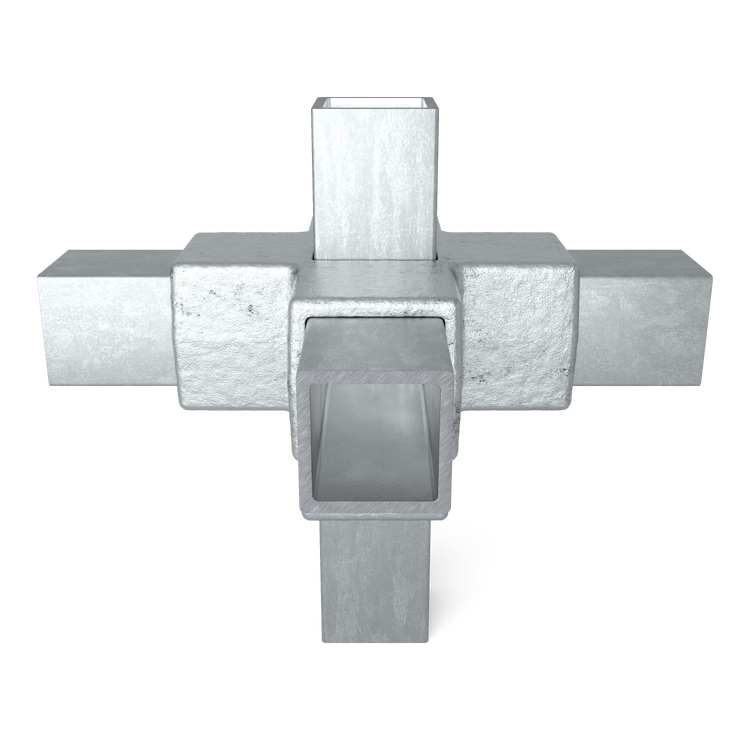

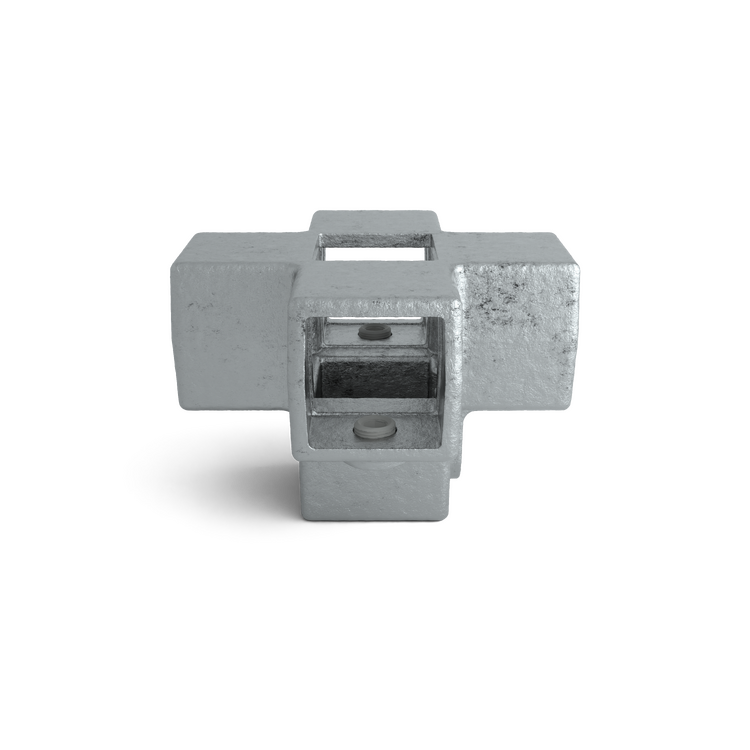

Four Socket Cross. 4-direction clamp used to fix uprights with 4 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Specifications

	608026S-40
System specifications
Size	40 mm
Type	Four socket cross
Color	Silver
Specifications tubefittings
Size	40 mm
Weight (kg)	1.33
Amount in box	6
Masterbox specifications
Width (cm)	24
Height (cm)	22.5
Depth (cm)	28.5
General additional specifications
Measurements screw	3/8” x 12,7 mm
Miscellaneous specifications
Height (mm)	40
Width (mm)	40
