161 natural Tube clamps round natural

Name: Lunado B.V.
Address: Kiotoweg 411, Rotterdam, 3047BG, NL
Telephone: +31 (0)10 - 415 55 75

To view the current prices, you must first log in or create a new account.

Description

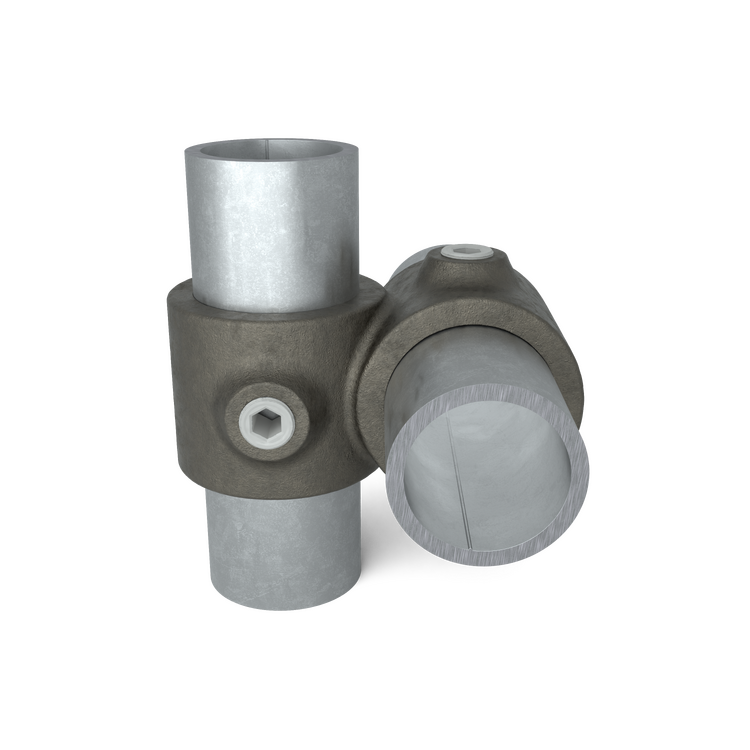

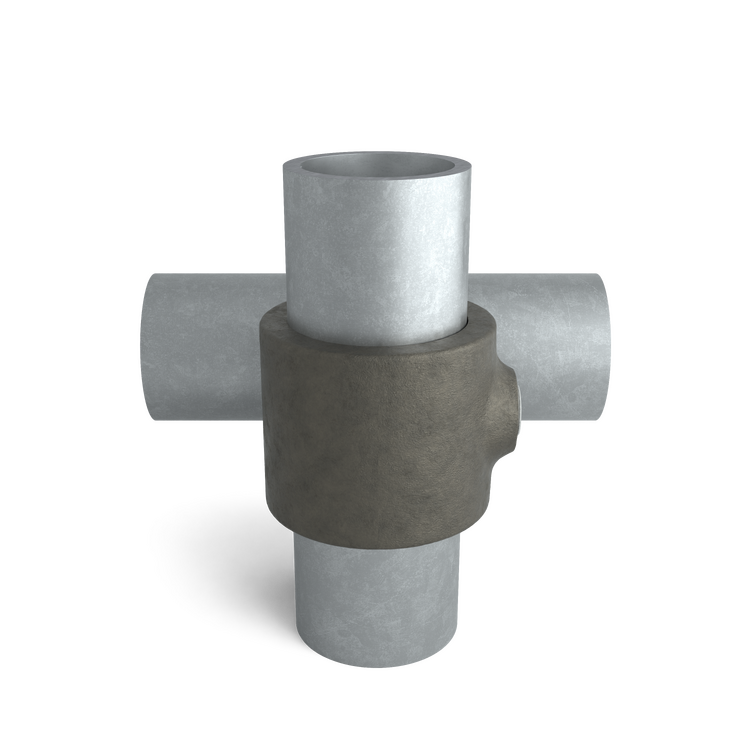

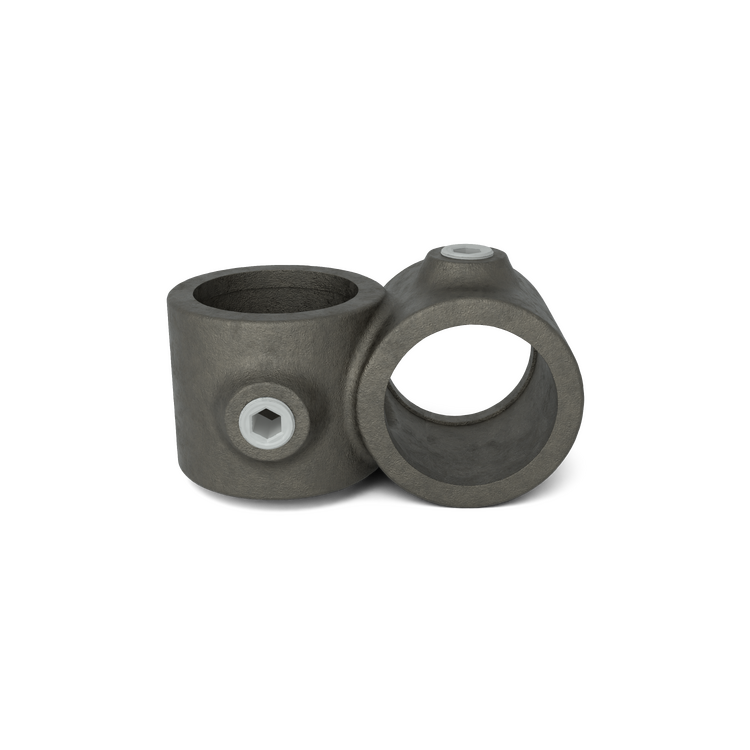

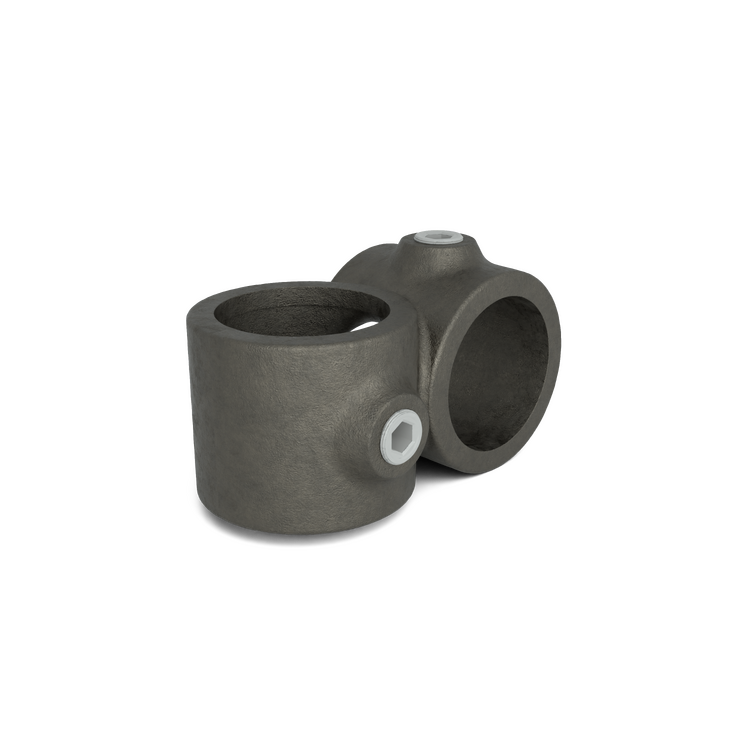

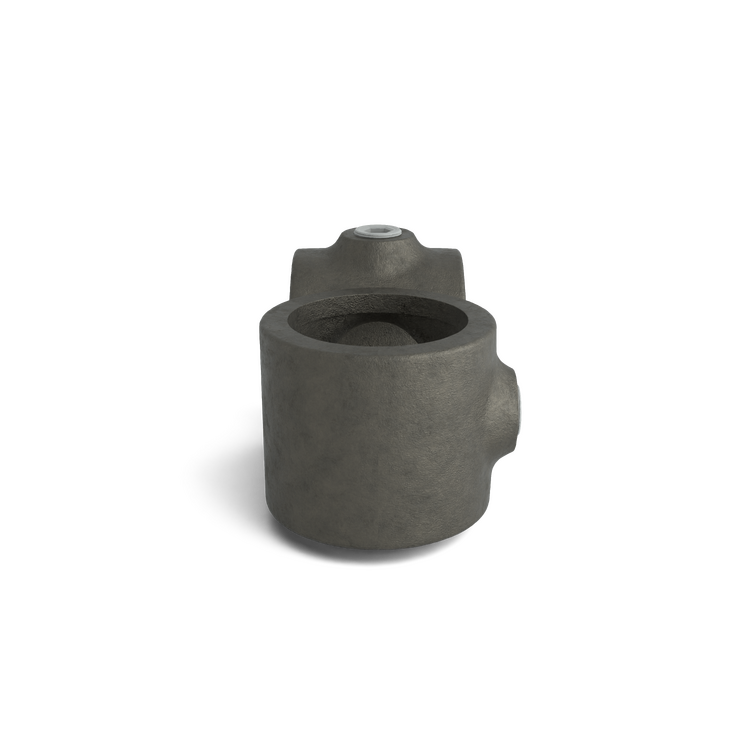

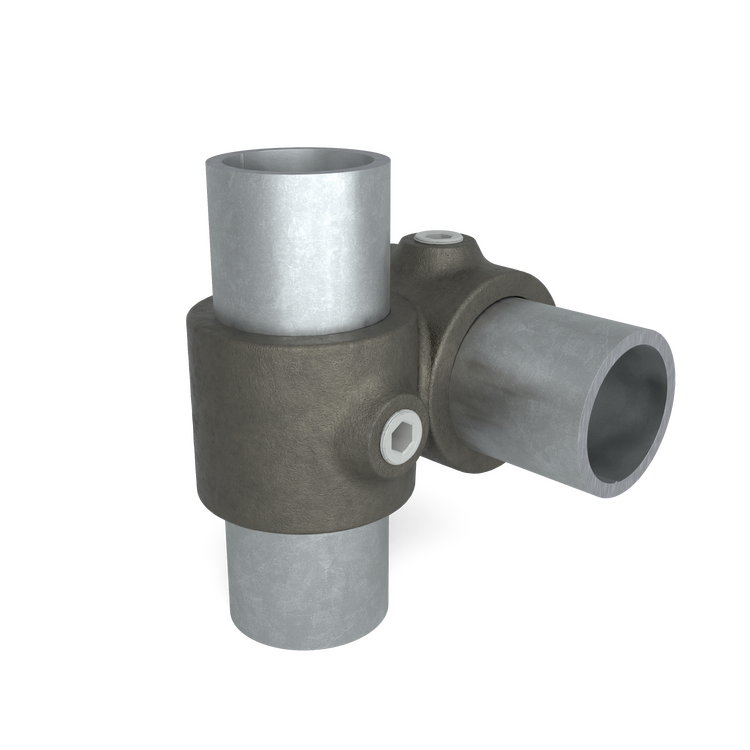

Crossover 90°. Crossover clamp (90°). Used for long tube intersections with uprights where decreasing cutting cost and increasing strength of the system with continuity of the tube is desired.

Specifications

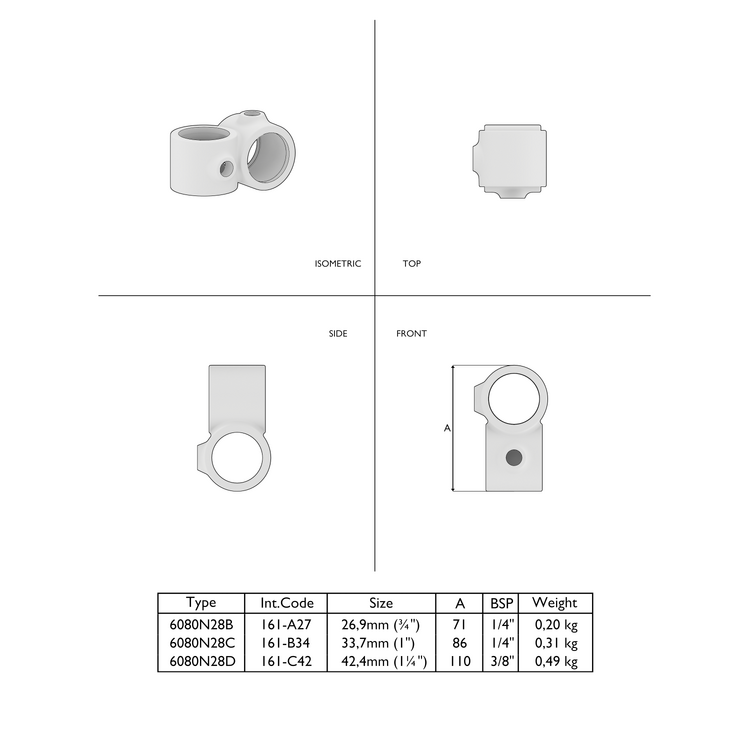

	6080N28B	6080N28C	6080N28D
System specifications
Size	A (26.9 mm)	B (33.7 mm)	C (42.4 mm)
Type	Crossover	Crossover	Crossover
Specifications tubefittings
Size	B	C	D
Diameter (mm)	26.9	33.7	42.4
Amount in box	80	60	40
Masterbox specifications
Width (cm)	24	24	24
Height (cm)	22.5	22.5	22.5
Depth (cm)	28.5	28.5	28.5
General additional specifications
Commodity code	7308909890	7308909890	7308909890
Country of origin	CN	CN	CN
