150 natural Tube clamps round natural

Name: Lunado B.V.
Address: Kiotoweg 411, Rotterdam, 3047BG, NL
Telephone: +31 (0)10 - 415 55 75

To view the current prices, you must first log in or create a new account.

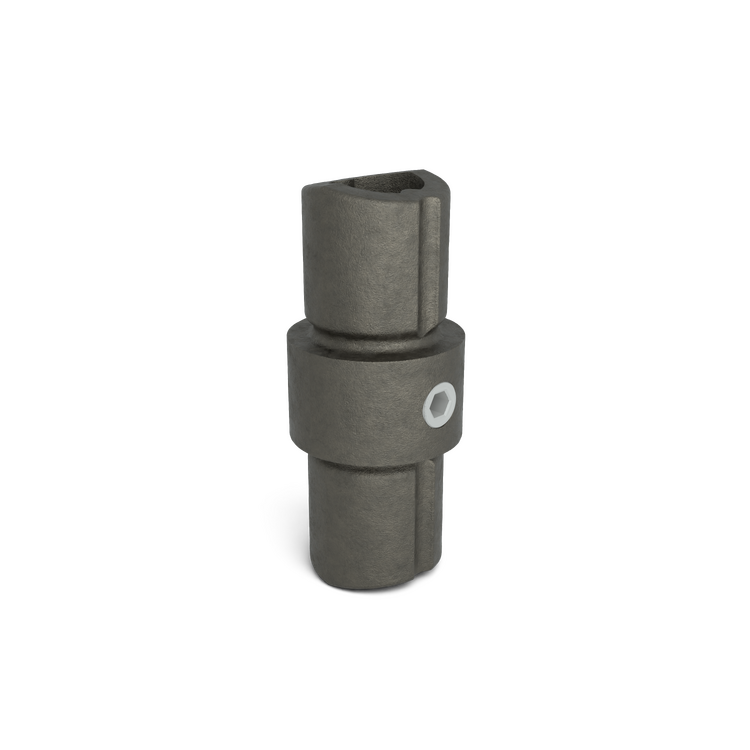

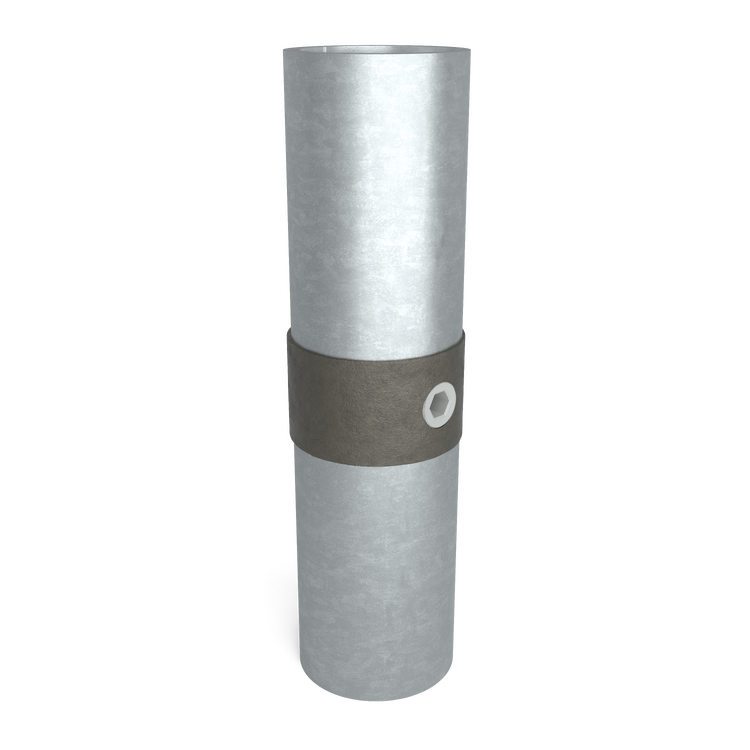

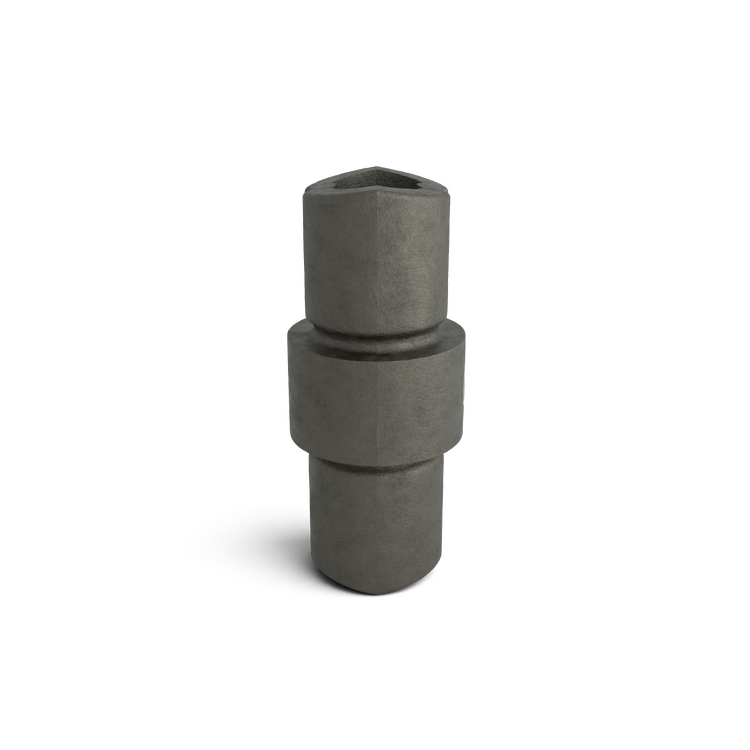

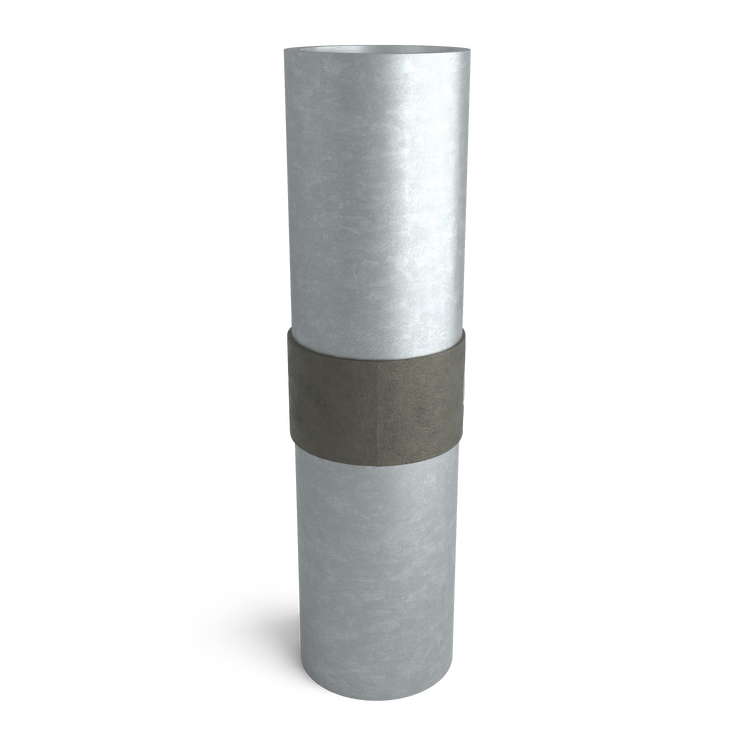

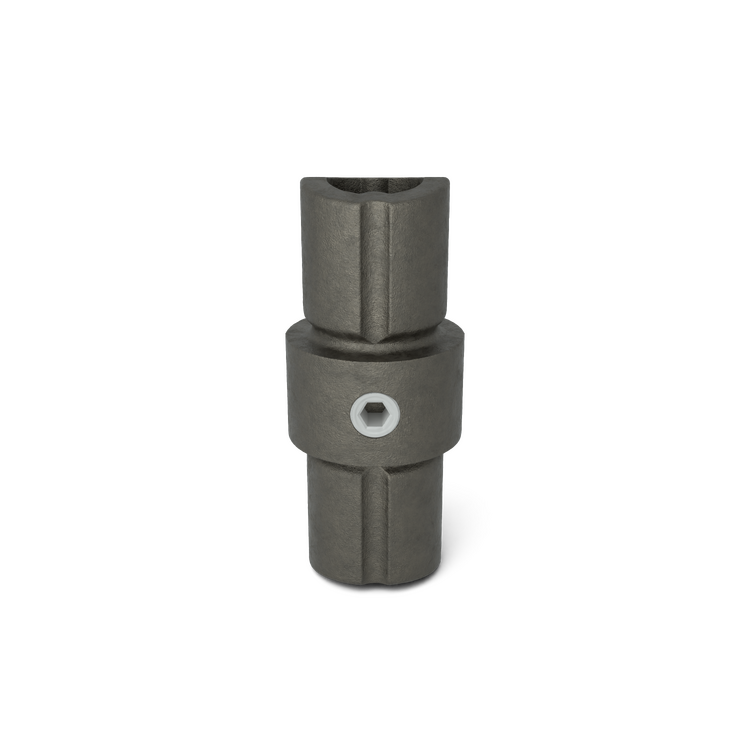

Internal Coupling. A streamlined flush joint in two tubes of the same size. Wall thickness must be 3.2 mm. Do not apply direct loads to this joint.

	6080N09B	6080N09C	6080N09D

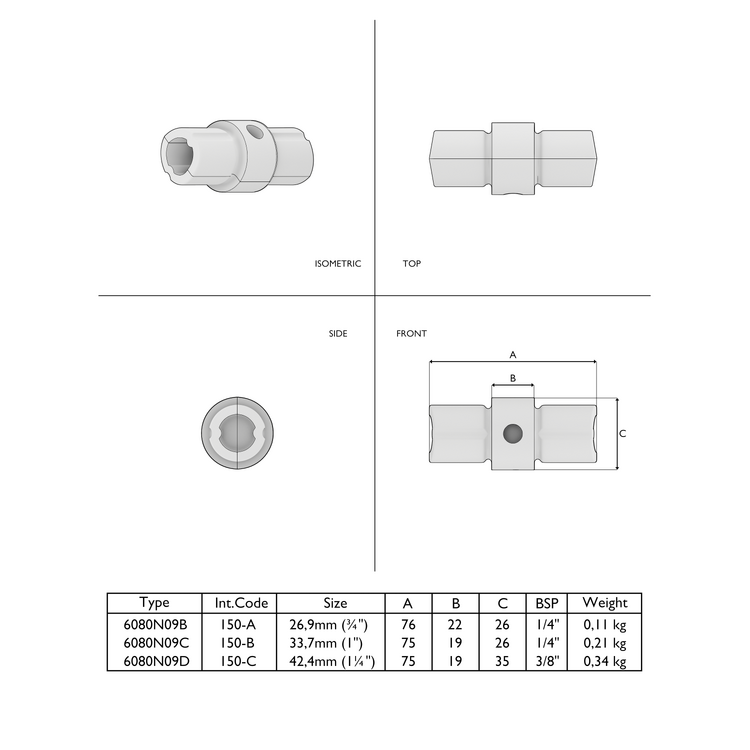

System specifications
Size	A (26.9 mm)	B (33.7 mm)	C (42.4 mm)
Type	Coupling	Coupling	Coupling
Specifications tubefittings
Size	B	C	D
Diameter (mm)	26.9	33.7	42.4
Amount in box	130	90	70
Masterbox specifications
Width (cm)	24	24	24
Height (cm)	22.5	22.5	22.5
Depth (cm)	28.5	28.5	28.5
General additional specifications
Commodity code	7308909890	7308909890	7308909890
Country of origin	CN	CN	CN
