132 natural Tube clamps round natural

To view the current prices, you must first log in or create a new account.

Description

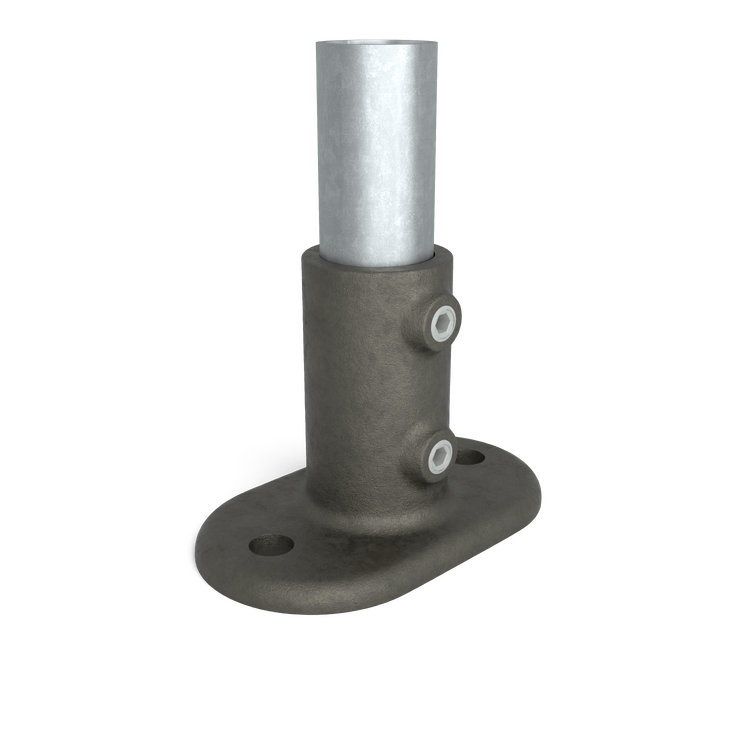

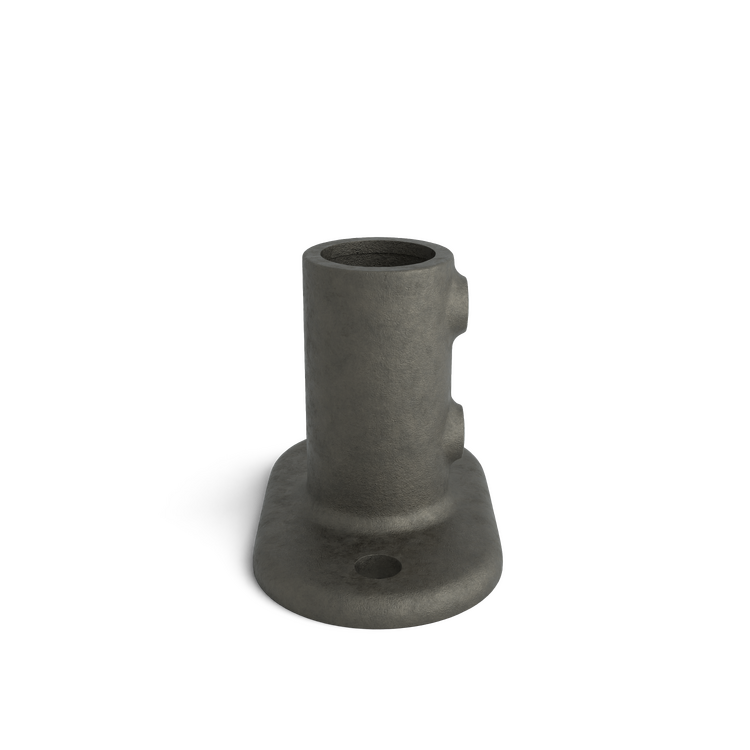

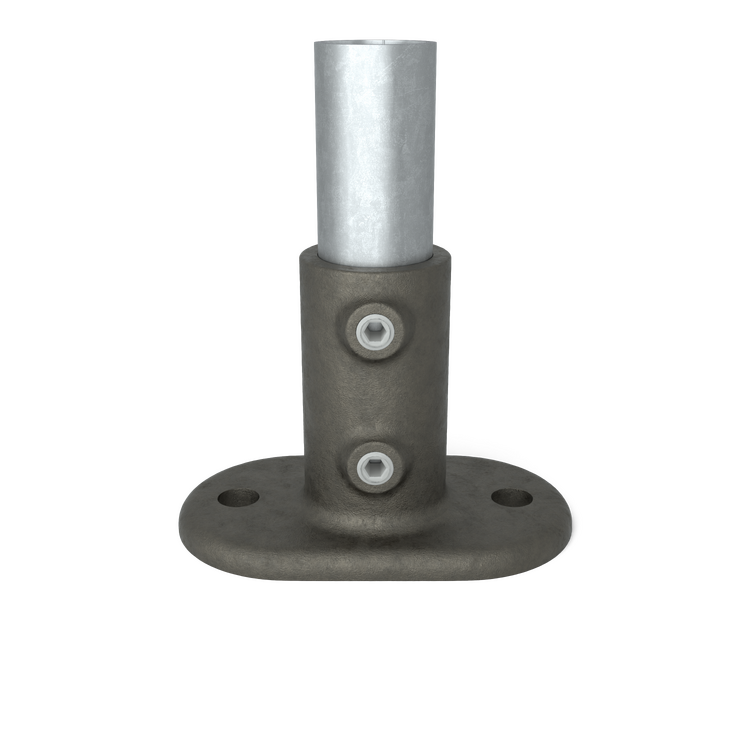

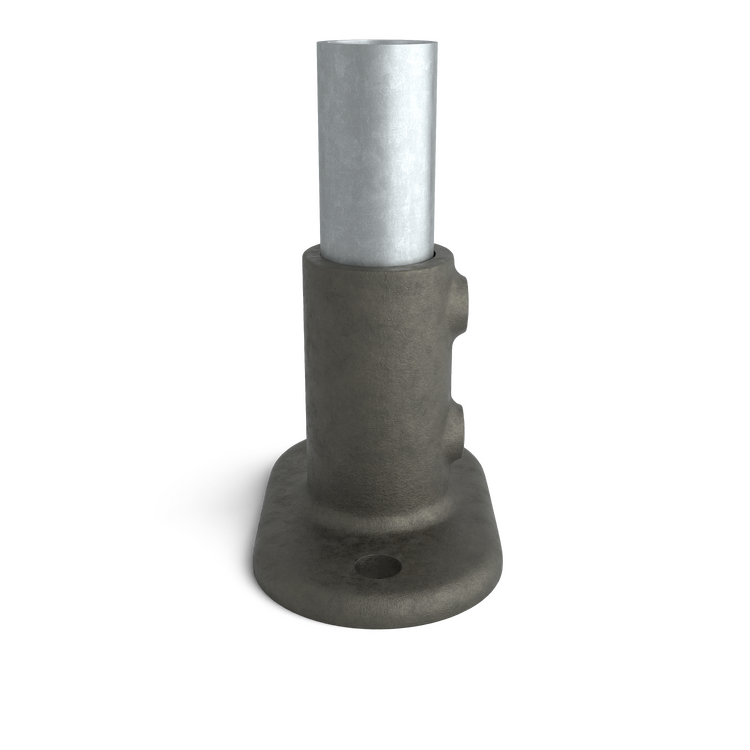

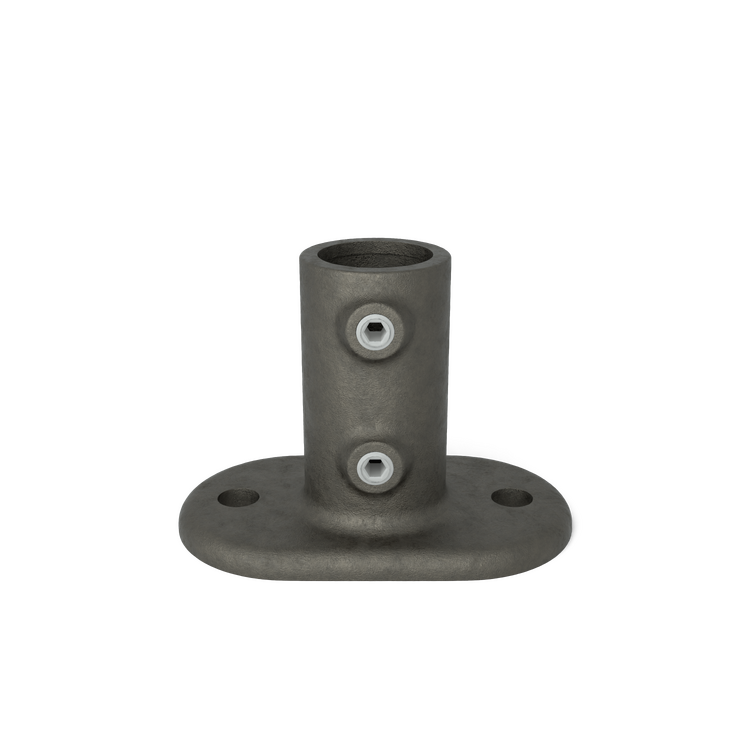

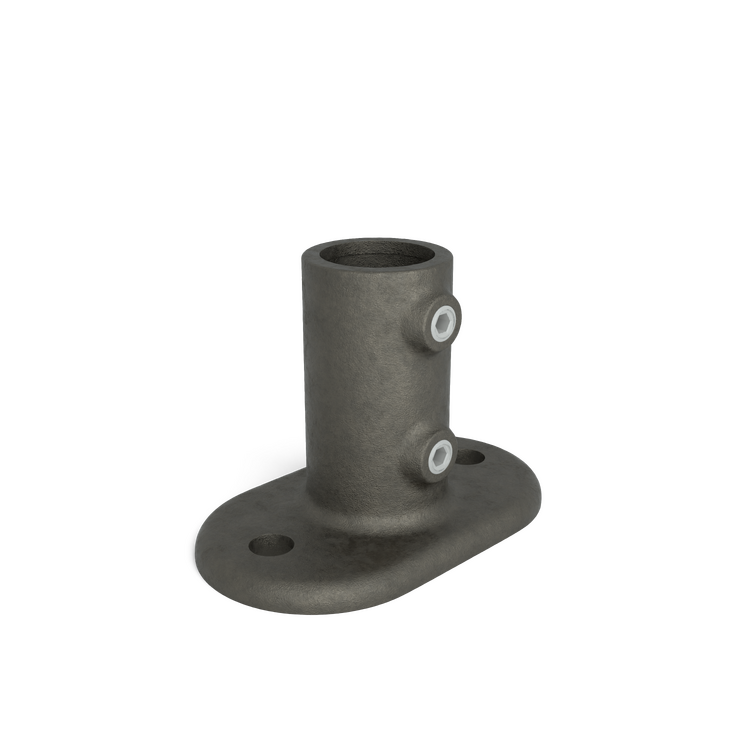

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Specifications

	6080N12B	6080N12C	6080N12D
System specifications

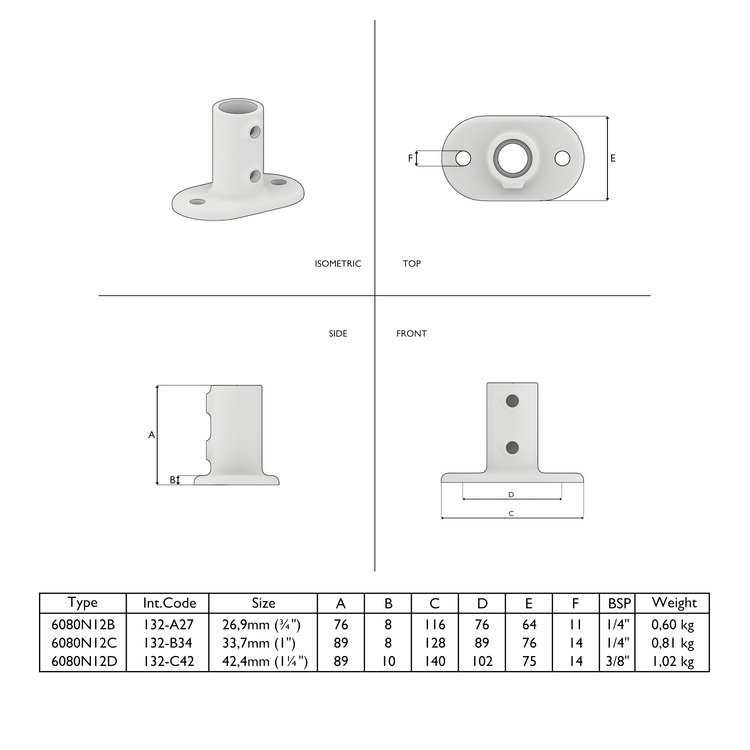

Size	A (26.9 mm)	B (33.7 mm)	C (42.4 mm)
Type	Flange	Flange	Flange
Specifications tubefittings
Size	B	C	D
Amount in box	30	20	20
Masterbox specifications
Width (cm)	24	24	24
Height (cm)	22.5	22.5	22.5
Depth (cm)	28.5	28.5	28.5
