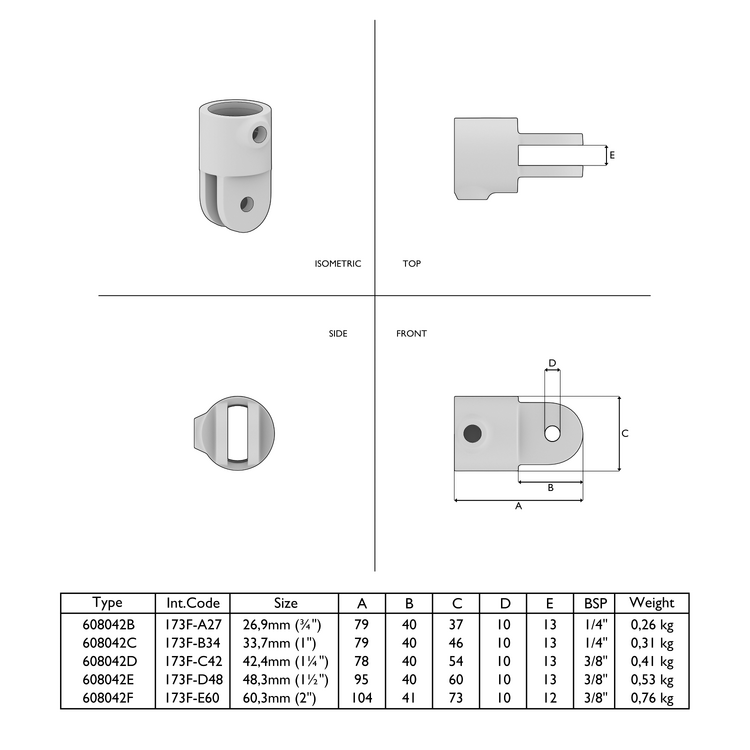

| 608042B | 608042C | 608042D | 608042E | 608042F | |
|---|---|---|---|---|---|
| System specifications | |||||
| Size | A (26.9 mm) | B (33.7 mm) | C (42.4 mm) | D (48.3 mm) | E (60.3 mm) |
| Type | Swivel | Swivel | Swivel | Swivel | Swivel |
| Color | Silver | Silver | Silver | Silver | Silver |
| Specifications tubefittings | |||||
| Size | B | C | D | E | F |
| Weight (kg) | 0.22 | 0.32 | 0.42 | 0.49 | 0.83 |
| Diameter (mm) | 26.9 | 33.7 | 42.4 | 48.3 | 60.3 |
| Tube diameter (") | ¾ | 1 | 1¼ | 1½ | 2 |
| Amount in box | 80 | 60 | 40 | 30 | 20 |
| Masterbox specifications | |||||
| Width (cm) | 24 | 24 | 24 | 24 | 24 |
| Height (cm) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Depth (cm) | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| General additional specifications | |||||
| Measurements screw | 1/4" x 12,5 mm | 1/4" x 12,5 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm |
| Commodity code | 7308909890 | 7308909890 | 7308909890 | 7308909890 | 7308909890 |
| Country of origin | CN | CN | CN | CN | CN |
