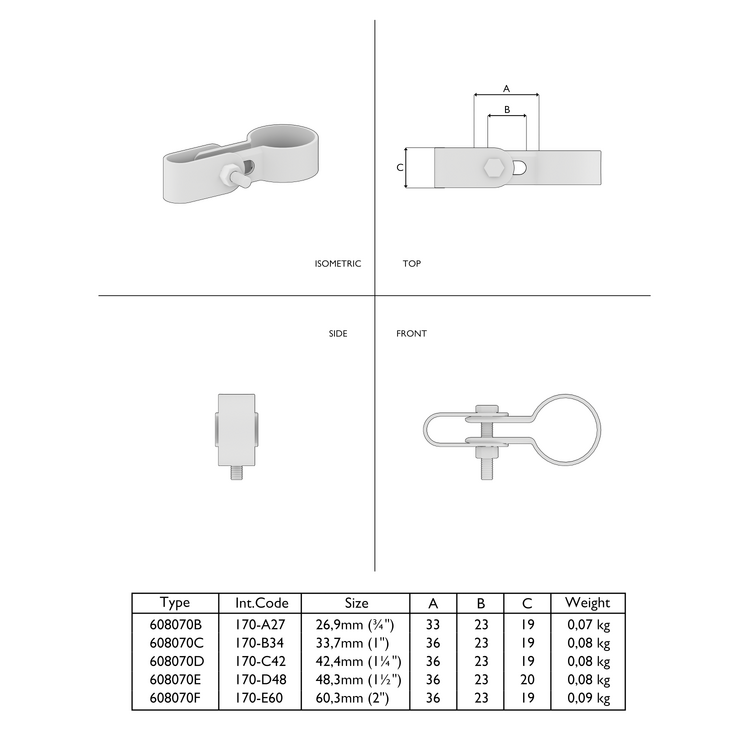

| 608070B | 608070C | 608070D | 608070E | 608070F | |
|---|---|---|---|---|---|
| System specifications | |||||
| Size | A (26.9 mm) | B (33.7 mm) | C (42.4 mm) | D (48.3 mm) | E (60.3 mm) |
| Type | Panel clip | Panel clip | Panel clip | Panel clip | Panel clip |
| Color | Silver | Silver | Silver | Silver | Silver |
| Specifications tubefittings | |||||
| Size | B | C | D | E | F |
| Weight (kg) | 0.07 | 0.08 | 0.08 | 0.08 | 0.09 |
| Tube diameter (") | ¾ | 1 | 1¼ | 1½ | 2 |
| Amount in box | 180 | 140 | 120 | 100 | 80 |
| Masterbox specifications | |||||
| Width (cm) | 24 | 24 | 24 | 24 | 24 |
| Height (cm) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Depth (cm) | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| General additional specifications | |||||
| Measurements screw | 1/4" x 12,5 mm | 1/4" x 12,5 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm |
