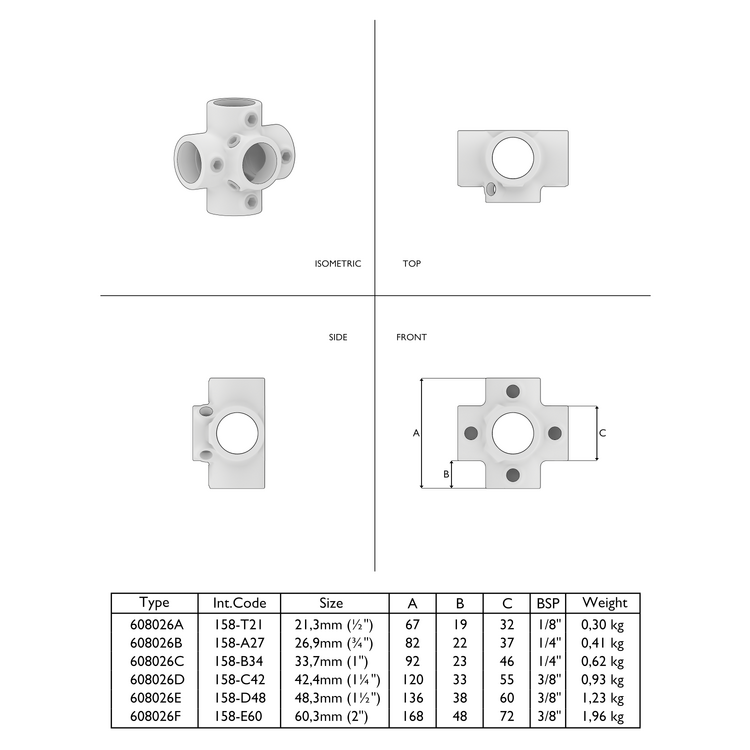

| 608026A | 608026B | 608026C | 608026D | 608026E | 608026F | |
|---|---|---|---|---|---|---|
| System specifications | ||||||
| Size | T (21.3 mm) | A (26.9 mm) | B (33.7 mm) | C (42.4 mm) | D (48.3 mm) | E (60.3 mm) |
| Type | Crossover | Crossover | Crossover | Crossover | Crossover | Crossover |
| Color | Silver | Silver | Silver | Silver | Silver | Silver |
| Specifications tubefittings | ||||||
| Size | A | B | C | D | E | F |
| Weight (kg) | 0.34 | 0.43 | 0.59 | 0.98 | 1.17 | 2 |
| Tube diameter (") | ½ | ¾ | 1 | 1¼ | 1½ | 2 |
| Amount in box | 45 | 35 | 20 | 10 | 6 | 5 |
| Masterbox specifications | ||||||
| Width (cm) | 24 | 24 | 24 | 24 | 24 | 24 |
| Height (cm) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Depth (cm) | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| General additional specifications | ||||||
| Measurements screw | 1/8” x 10 mm | 1/4" x 12,5 mm | 1/4" x 12,5 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm |
