| 608006A | 608006B | 608006C | 608006D | 608006E | 608006ED | 608006F | |
|---|---|---|---|---|---|---|---|

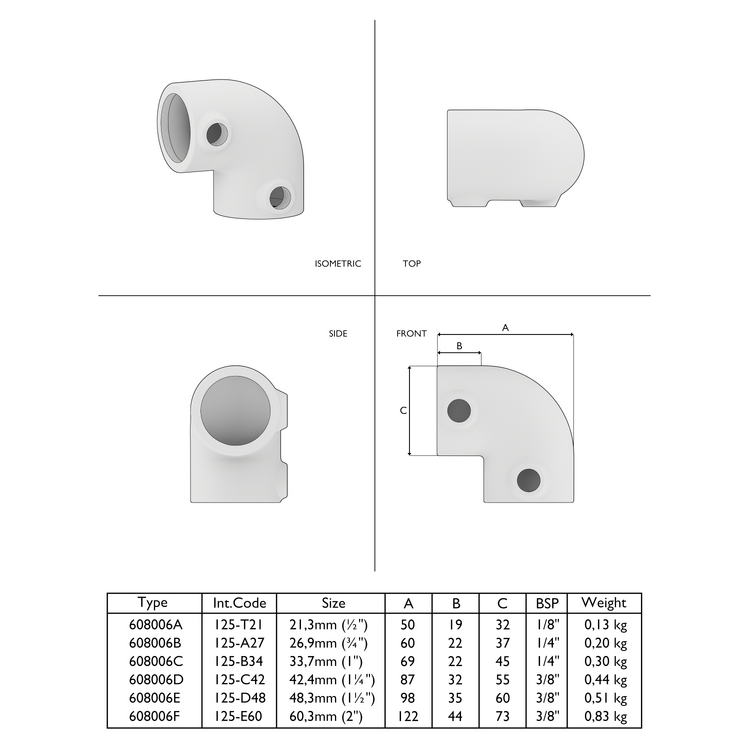

| System specifications | |||||||
| Size | T (21.3 mm) | A (26.9 mm) | B (33.7 mm) | C (42.4 mm) | D (48.3 mm) | DC (48.3 & 42.4 mm) | E (60.3 mm) |

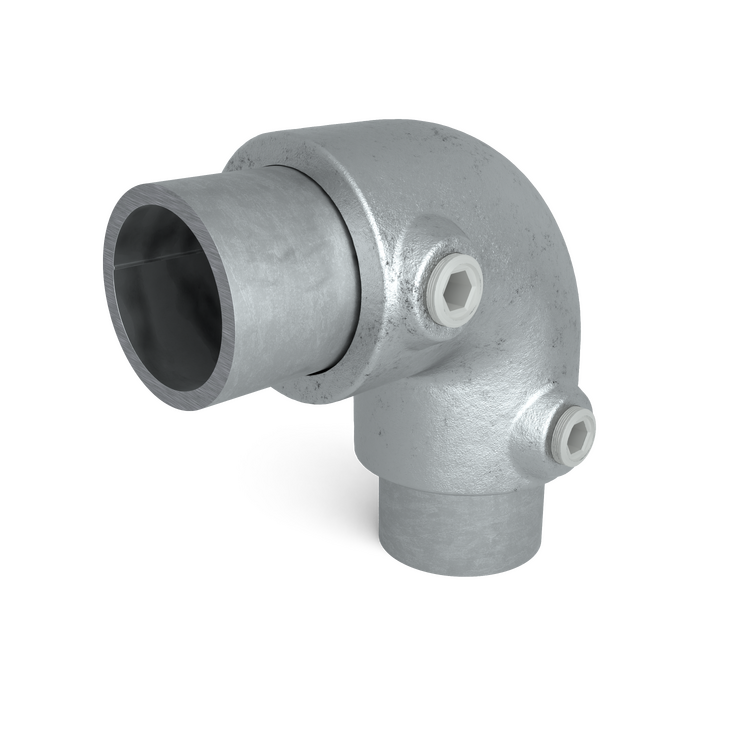

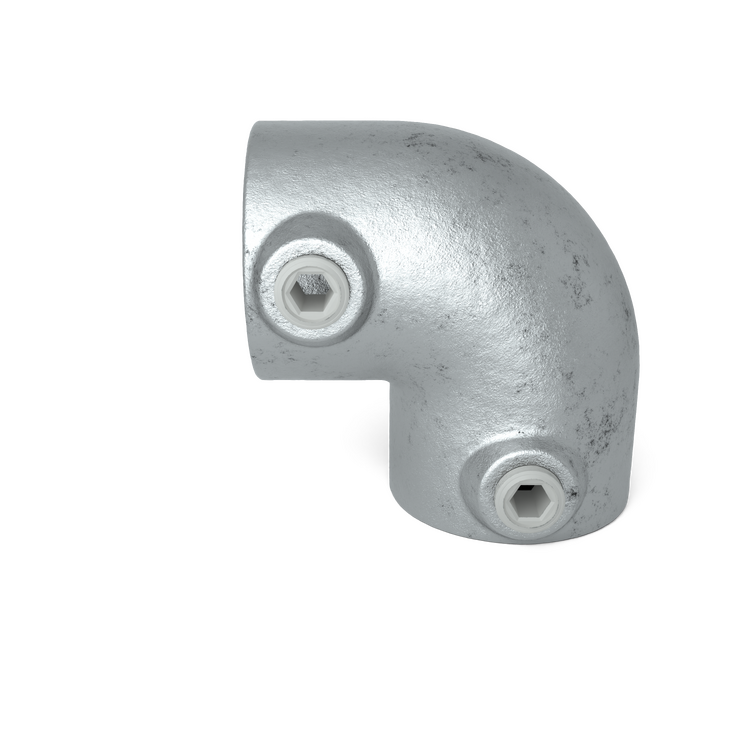

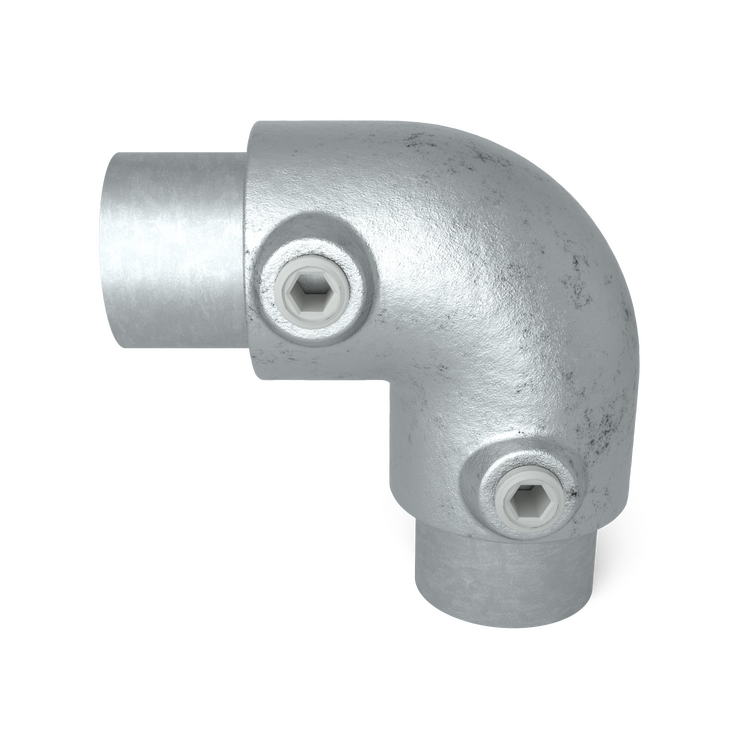

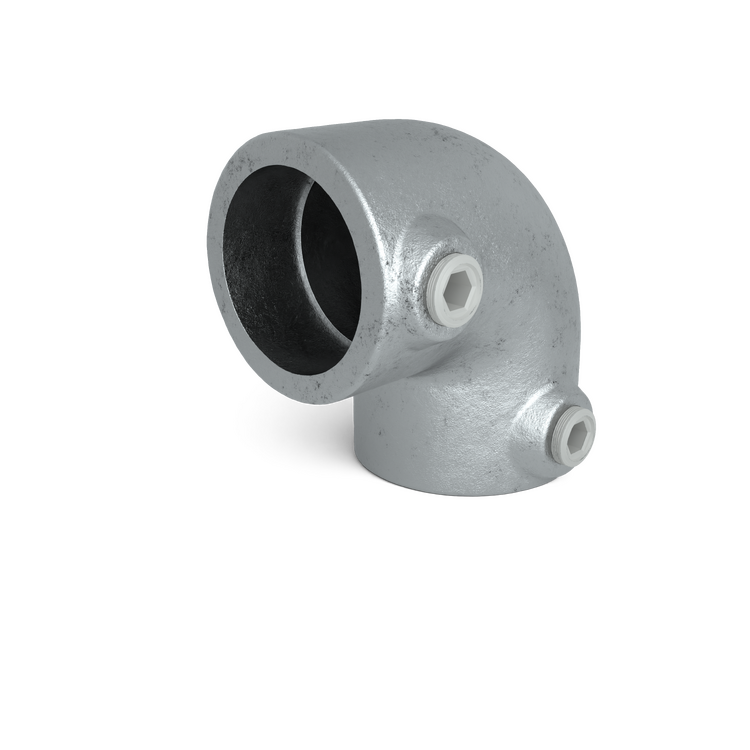

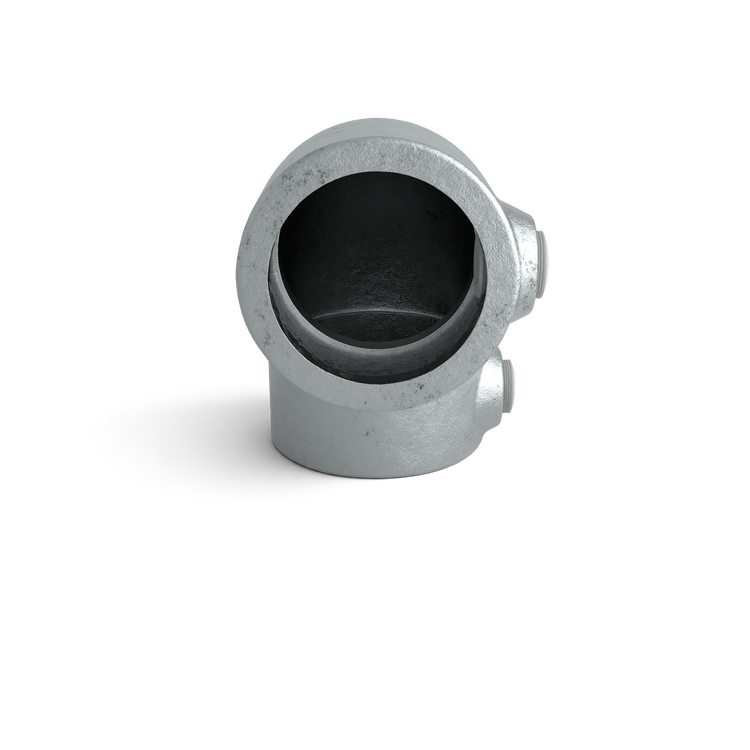

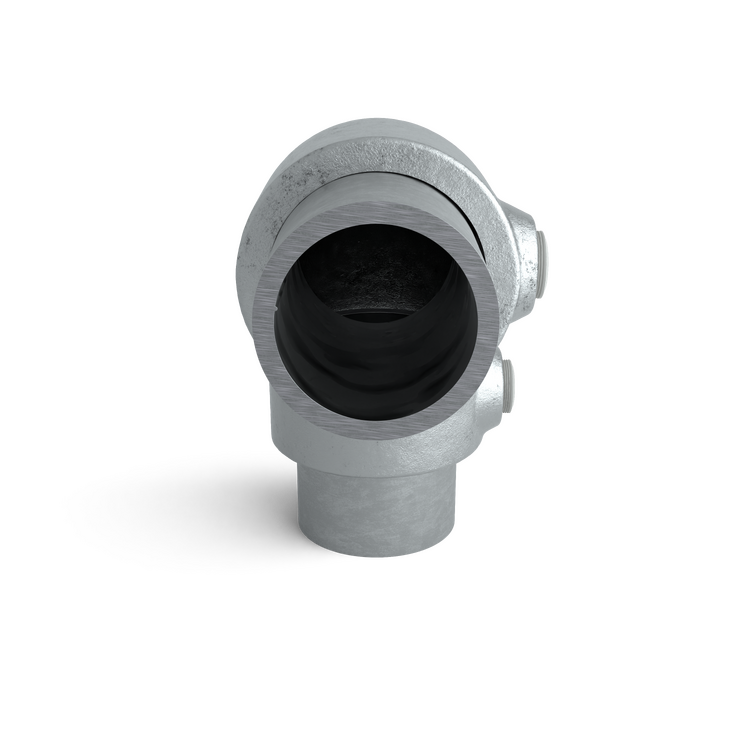

| Type | Elbow 90° | Elbow 90° | Elbow 90° | Elbow 90° | Elbow 90° | Elbow 90° | Elbow 90° |
| Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Specifications tubefittings | |||||||
| Size | A | B | C | D | E | ED | F |
| Weight (kg) | 0.17 | 0.24 | 0.36 | 0.59 | 0.69 | 0.7 | 1.12 |
| Outer diameter (") | ½ | ¾ | 1 | 1¼ | 1½ | - | 2 |
| Amount in box | 120 | 80 | 50 | 25 | 20 | 30 | 10 |
| Masterbox specifications | |||||||
| Width (cm) | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Height (cm) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Depth (cm) | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| General additional specifications | |||||||
| Measurements screw | 1/8” x 10 mm | 1/4" x 12,5 mm | 1/4" x 12,5 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm |
