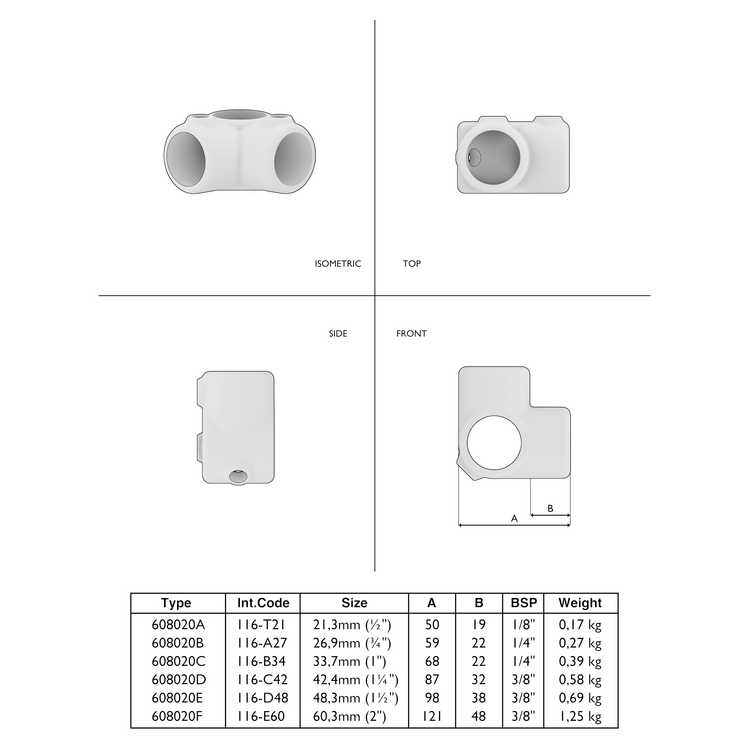

| 608020A | 608020B | 608020C | 608020D | 608020E | 608020F | |
|---|---|---|---|---|---|---|
| System specifications | ||||||
| Size | T (21.3 mm) | A (26.9 mm) | B (33.7 mm) | C (42.4 mm) | D (48.3 mm) | E (60.3 mm) |
| Type | Corner w thr tube 90° | Corner w thr tube 90° | Corner w thr tube 90° | Corner w thr tube 90° | Corner w thr tube 90° | Corner w thr tube 90° |
| Color | Silver | Silver | Silver | Silver | Silver | Silver |
| Specifications tubefittings | ||||||
| Size | A | B | C | D | E | F |
| Weight (kg) | 0.2 | 0.27 | 0.4 | 0.61 | 0.72 | 1.16 |
| Outer diameter (") | ½ | ¾ | 1 | 1¼ | 1½ | 2 |
| Amount in box | 100 | 65 | 35 | 20 | 15 | 10 |
| Masterbox specifications | ||||||
| Width (cm) | 24 | 24 | 24 | 24 | 24 | 24 |
| Height (cm) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Depth (cm) | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| General additional specifications | ||||||
| Measurements screw | 1/8” x 10 mm | 1/4" x 12,5 mm | 1/4" x 12,5 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm |
