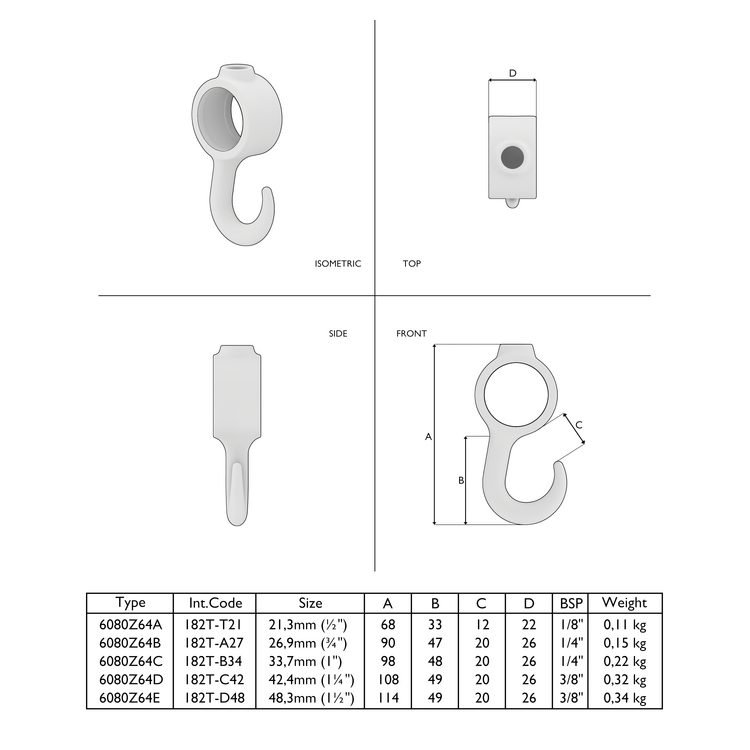

| 6080Z64A | 6080Z64B | 6080Z64C | 6080Z64D | 6080Z64E | |
|---|---|---|---|---|---|
| System specifications | |||||
| Size | T (21.3 mm) | A (26.9 mm) | B (33.7 mm) | C (42.4 mm) | D (48.3 mm) |

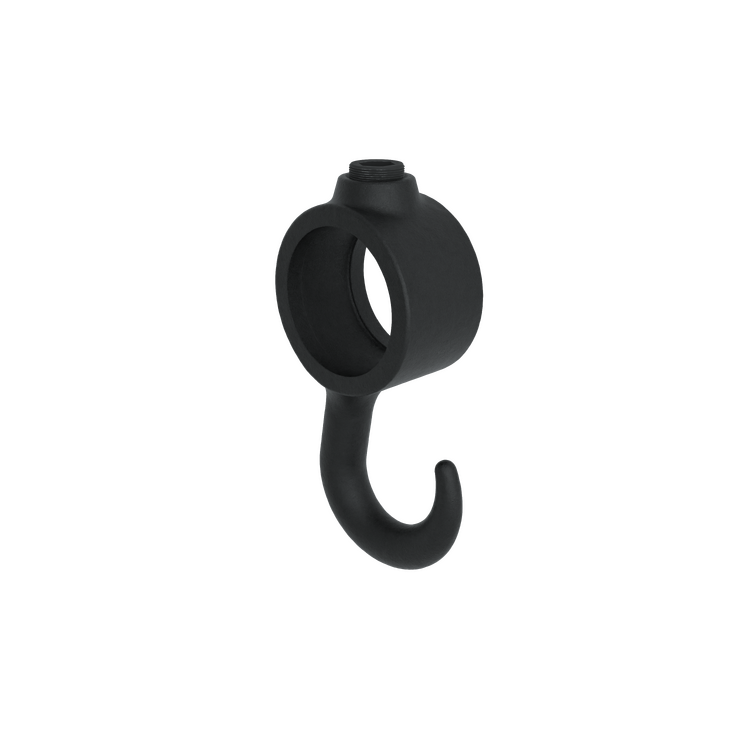

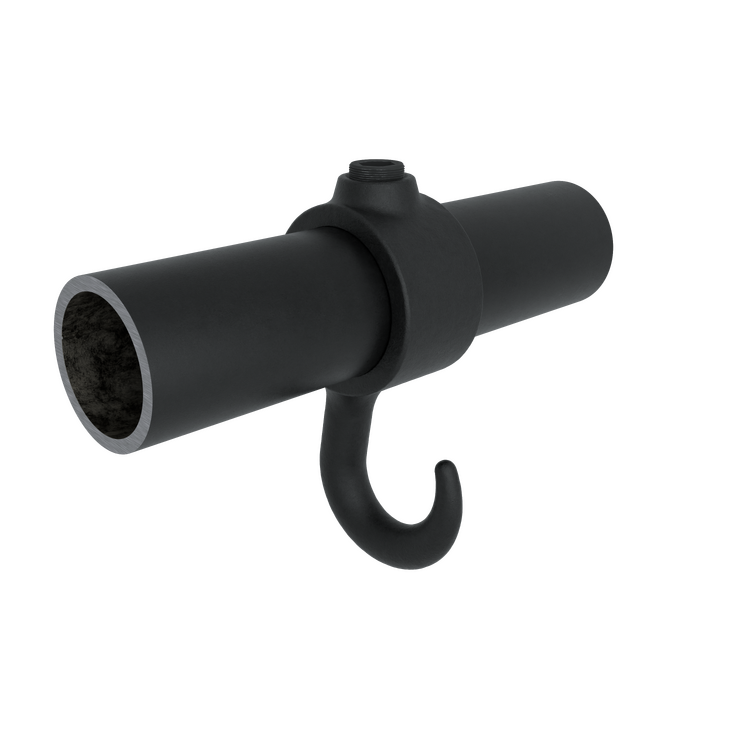

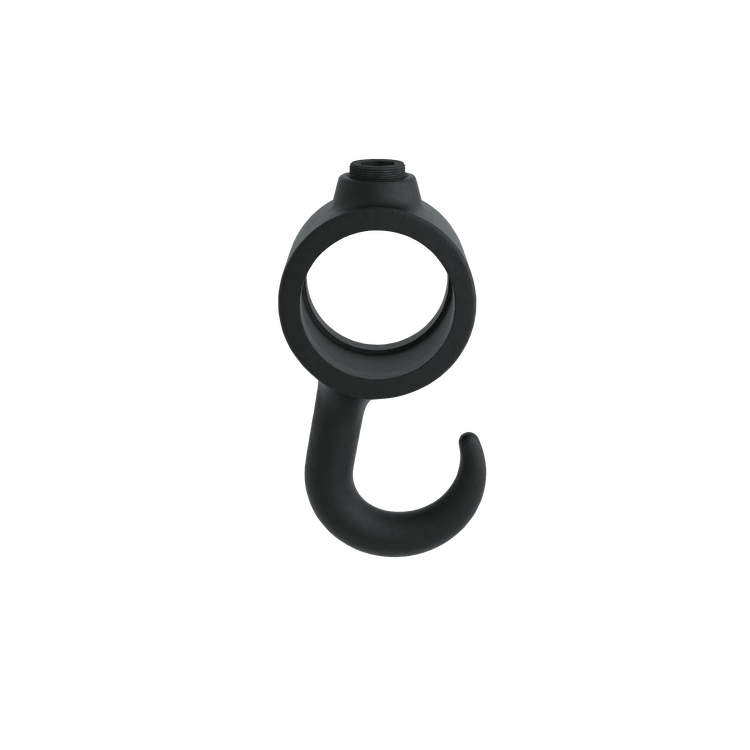

| Type | Coat hook | Coat hook | Coat hook | Coat hook | Coat hook |
| Color | Black | Black | Black | Black | Black |
| Specifications tubefittings | |||||
| Size | A | B | C | D | E |
| Weight (kg) | 0.08 | 0.16 | 0.18 | 0.2 | 0.21 |
| Outer diameter (") | ½ | ¾ | 1 | 1¼ | 1½ |
| Amount in box | 200 | 115 | 110 | 120 | 100 |
| Masterbox specifications | |||||
| Width (cm) | 24 | 24 | 24 | 24 | 24 |
| Height (cm) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Depth (cm) | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| General additional specifications | |||||
| Measurements screw | 1/8” x 10 mm | 1/4" x 12,5 mm | 1/4" x 12,5 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm |
