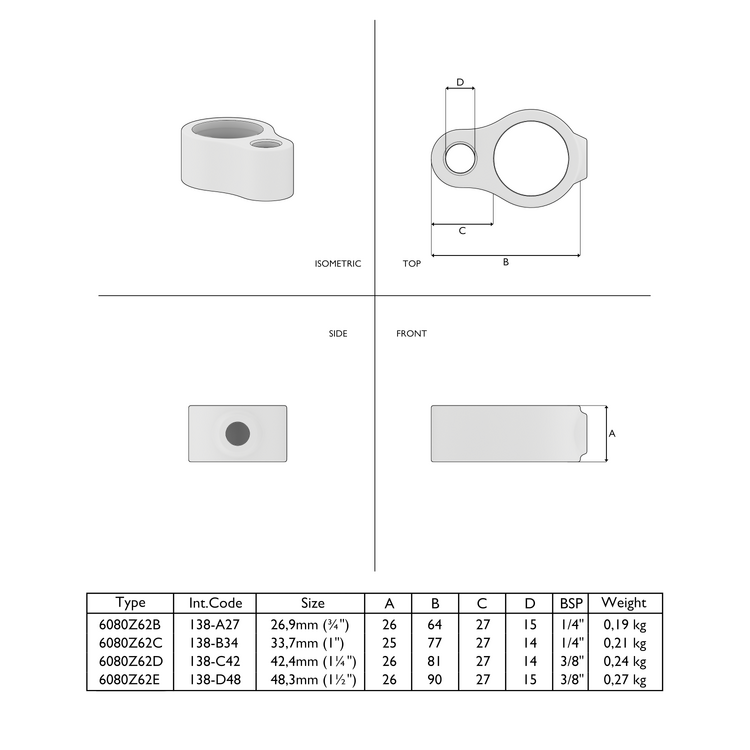

| 6080Z62B | 6080Z62C | 6080Z62D | 6080Z62E | |
|---|---|---|---|---|
| System specifications | ||||
| Size | A (26.9 mm) | B (33.7 mm) | C (42.4 mm) | D (48.3 mm) |
| Type | Eye hinge | Eye hinge | Eye hinge | Eye hinge |
| Color | Black | Black | Black | Black |
| Specifications tubefittings | ||||
| Size | B | C | D | E |
| Weight (kg) | 0.16 | 0.18 | 0.21 | 0.22 |
| Outer diameter (") | ¾ | 1 | 1¼ | 1½ |
| Amount in box | 100 | 90 | 80 | 70 |
| Masterbox specifications | ||||
| Width (cm) | 24 | 24 | 24 | 24 |
| Height (cm) | 22.5 | 22.5 | 22.5 | 22.5 |
| Depth (cm) | 28.5 | 28.5 | 28.5 | 28.5 |
| General additional specifications | ||||
| Measurements screw | 1/4" x 12,5 mm | 1/4" x 12,5 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm |
