6080Z12B

132 black Tube clamps round black

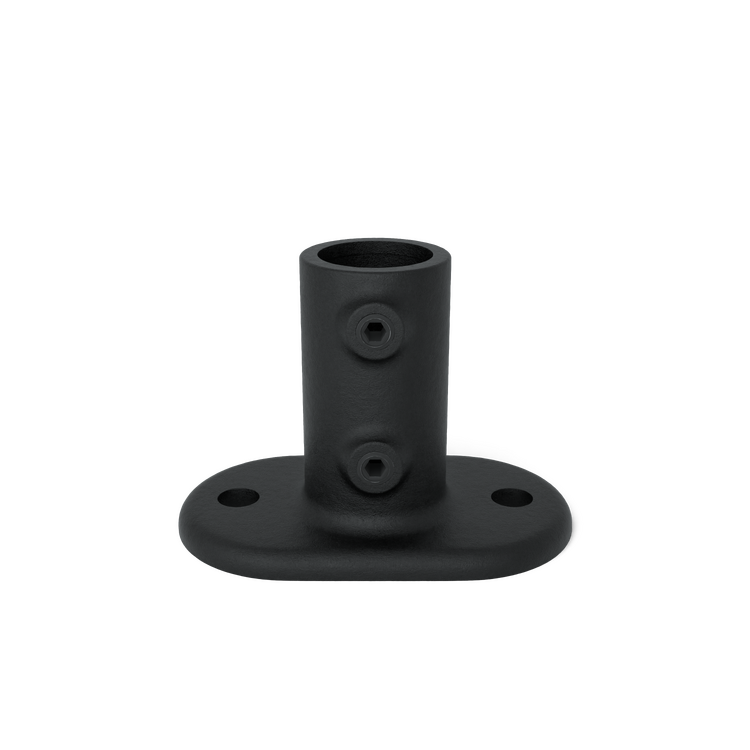

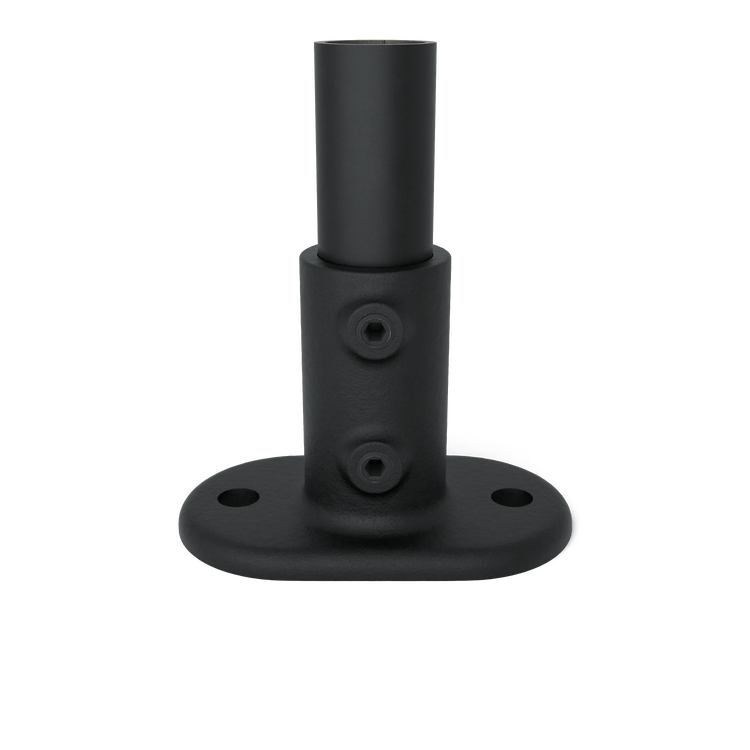

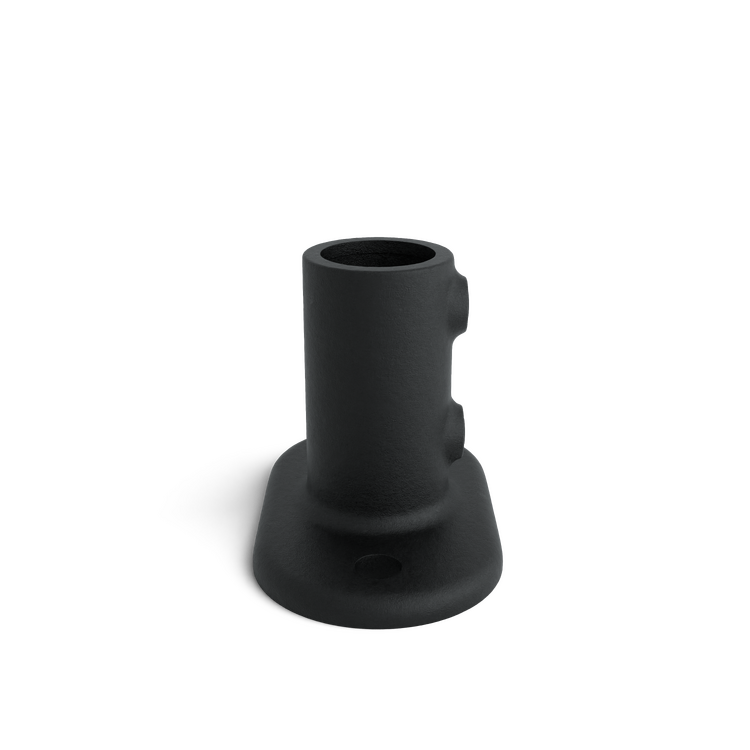

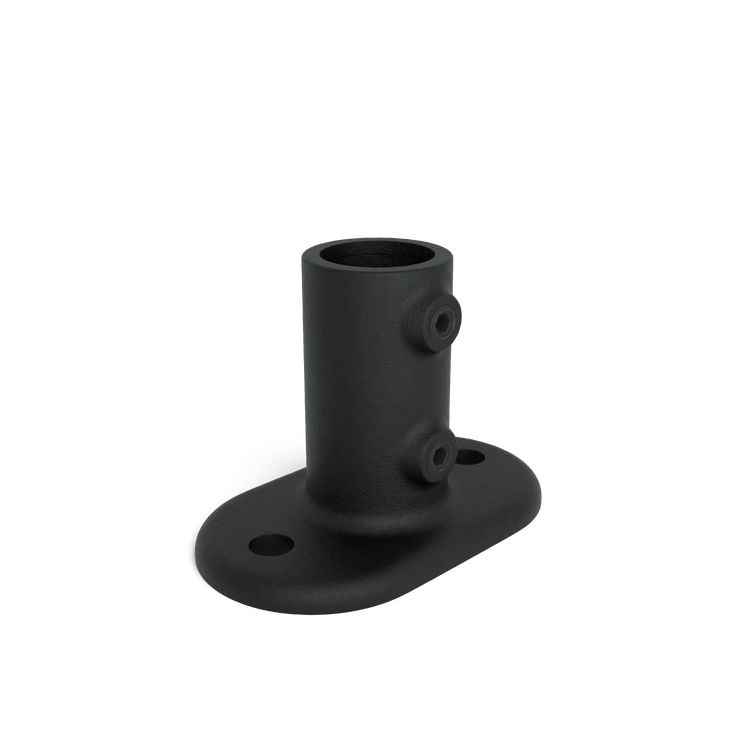

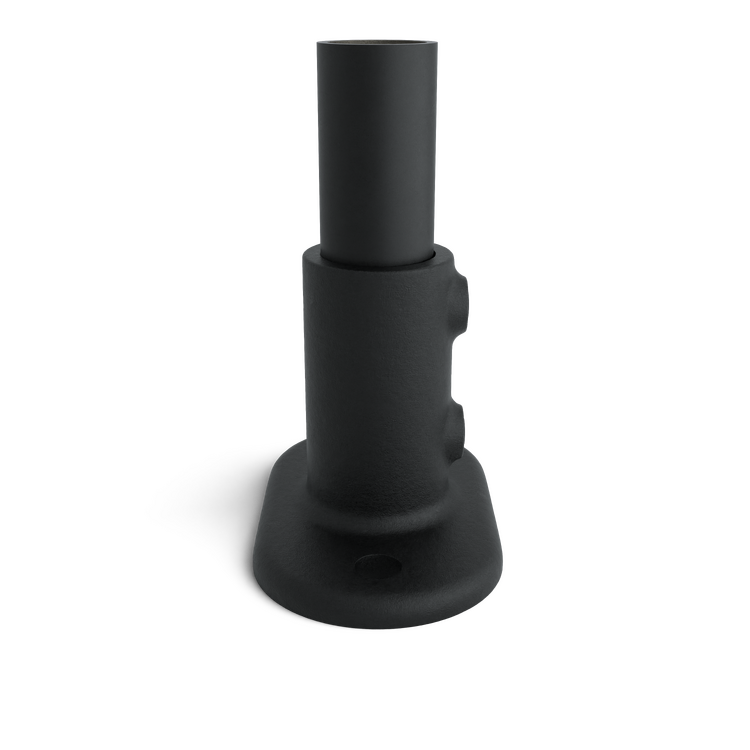

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.
The tube fittings are equipped with black colored stainless steel adjusting screws with cutting edge.
  6080Z12B 6080Z12C 6080Z12D 6080Z12E

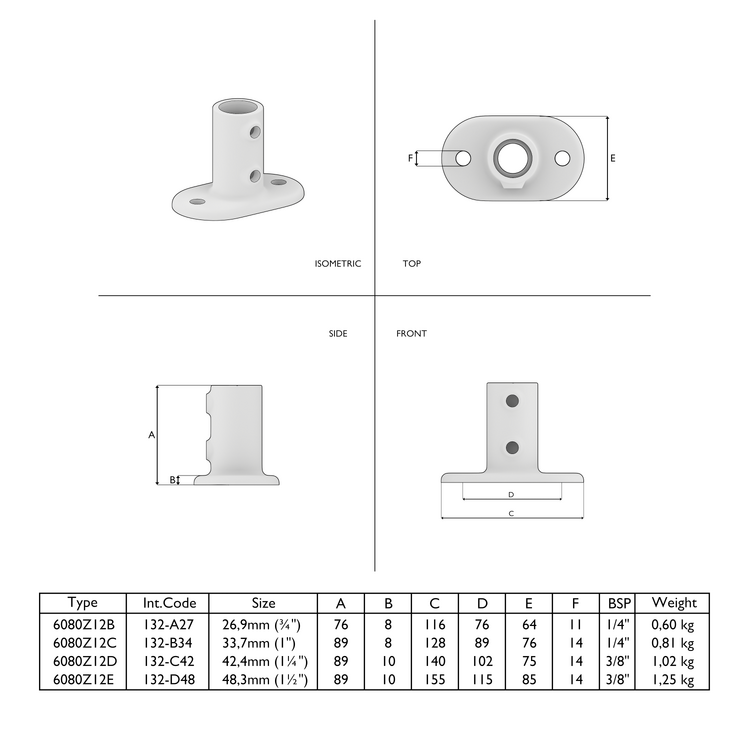

System specifications
Size A (26.9 mm) B (33.7 mm) C (42.4 mm) D (48.3 mm)
Type Railing base flange Railing base flange Railing base flange Railing base flange
Color Black Black Black Black
Specifications tubefittings
Size B C D E
Weight (kg) 0.47 0.75 0.98 1.21
Outer diameter (") ¾ 1 1¼ 1½
Amount in box 30 20 20 15
Masterbox specifications
Width (cm) 24 24 24 24
Height (cm) 22.5 22.5 22.5 22.5
Depth (cm) 28.5 28.5 28.5 28.5
General additional specifications
Measurements screw 1/4" x 12,5 mm 1/4" x 12,5 mm 3/8” x 12,7 mm 3/8” x 12,7 mm
