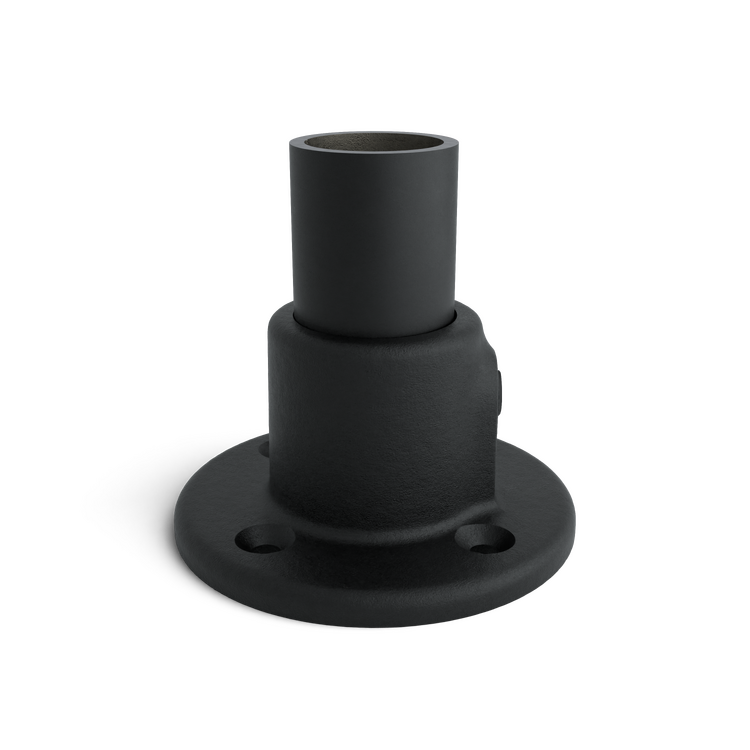

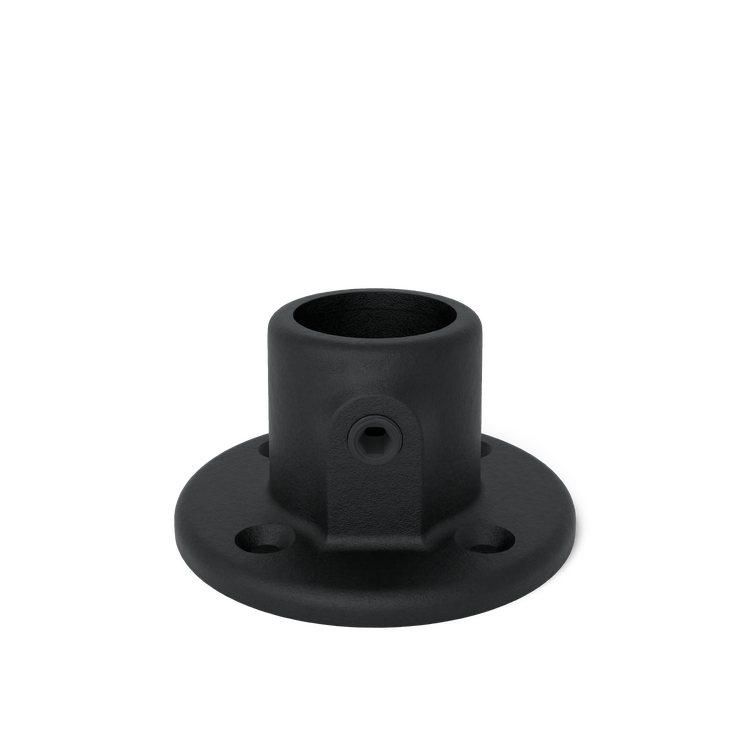

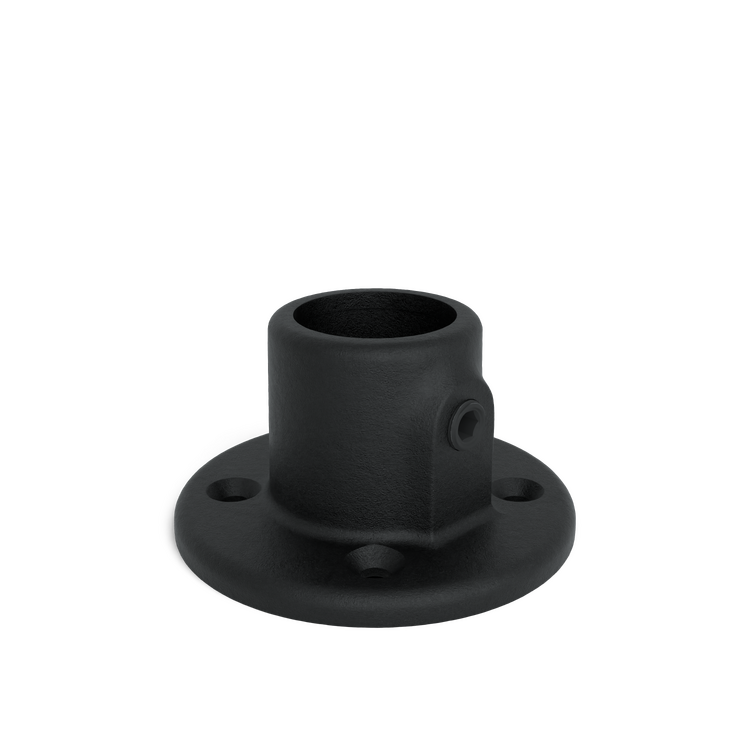

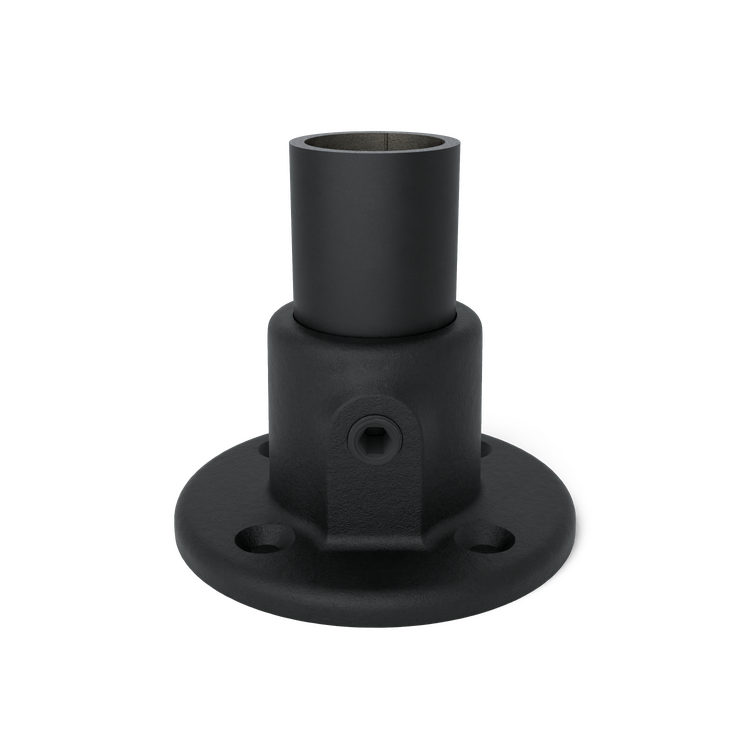

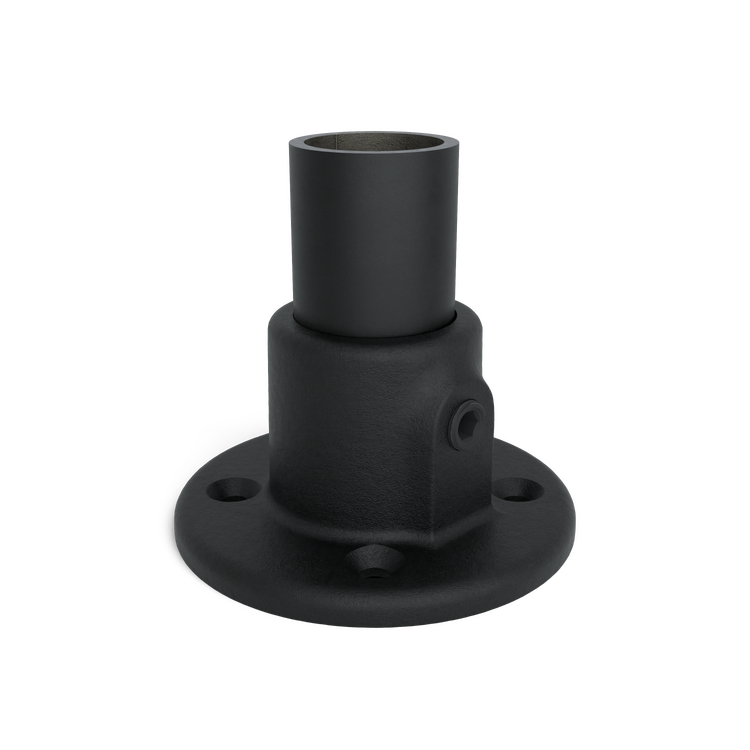

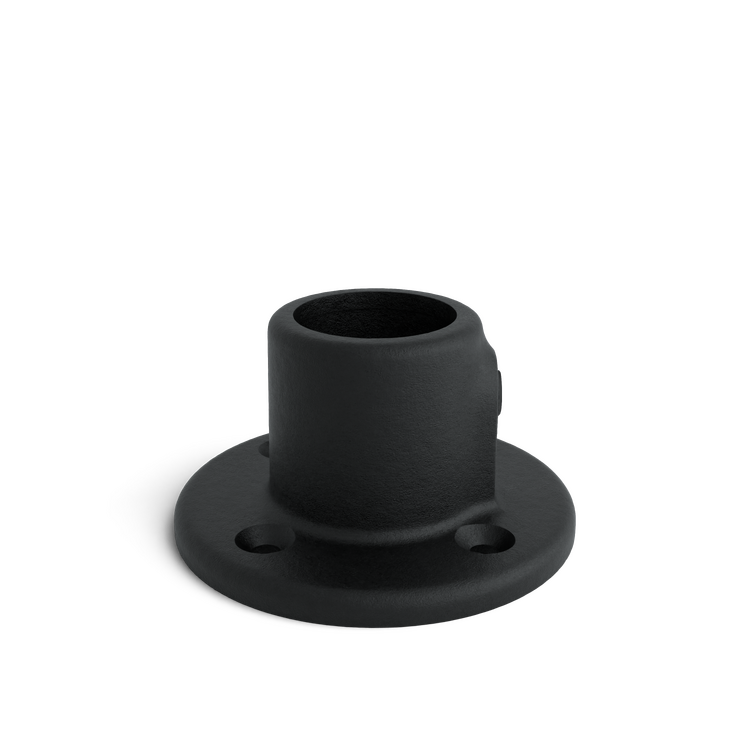

| 6080Z10A | 6080Z10B | 6080Z10C | 6080Z10D | 6080Z10E | |
|---|---|---|---|---|---|
| System specifications | |||||
| Size | T (21.3 mm) | A (26.9 mm) | B (33.7 mm) | C (42.4 mm) | D (48.3 mm) |
| Type | Flange | Flange | Flange | Flange | Flange |
| Color | Black | Black | Black | Black | Black |
| Specifications tubefittings | |||||
| Size | A | B | C | D | E |
| Weight (kg) | 0.2 | 0.29 | 0.44 | 0.62 | 0.84 |
| Diameter (mm) | 21.3 | 26.9 | 33.7 | 42.4 | 48.3 |
| Tube diameter (") | ½ | ¾ | 1 | 1¼ | 1½ |
| Amount in box | 100 | 55 | 40 | 35 | 20 |
| Masterbox specifications | |||||
| Width (cm) | 24 | 24 | 24 | 24 | 24 |
| Height (cm) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Depth (cm) | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| General additional specifications | |||||
| Measurements screw | 1/8” x 10 mm | 1/4" x 12,5 mm | 1/4" x 12,5 mm | 3/8” x 12,7 mm | 3/8” x 12,7 mm |
| Commodity code | 7308909890 | 7308909890 | 7308909890 | 7308909890 | 7308909890 |
| Country of origin | CN | CN | CN | CN | CN |
