Sheet Pile Wall Accessories

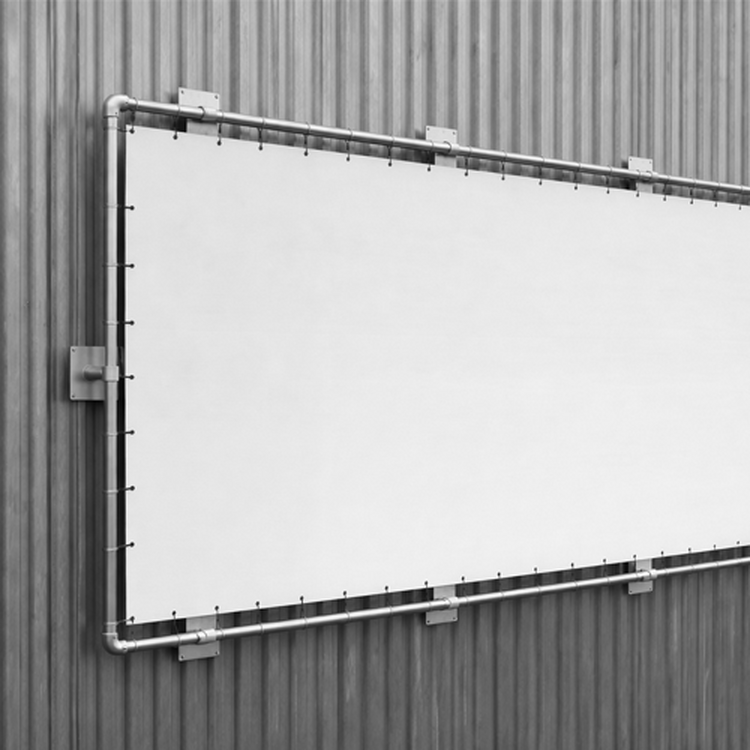

These sheet pile plates are the ideal solution for the simple and secure mounting of advertising frames on sheet pile profiles.

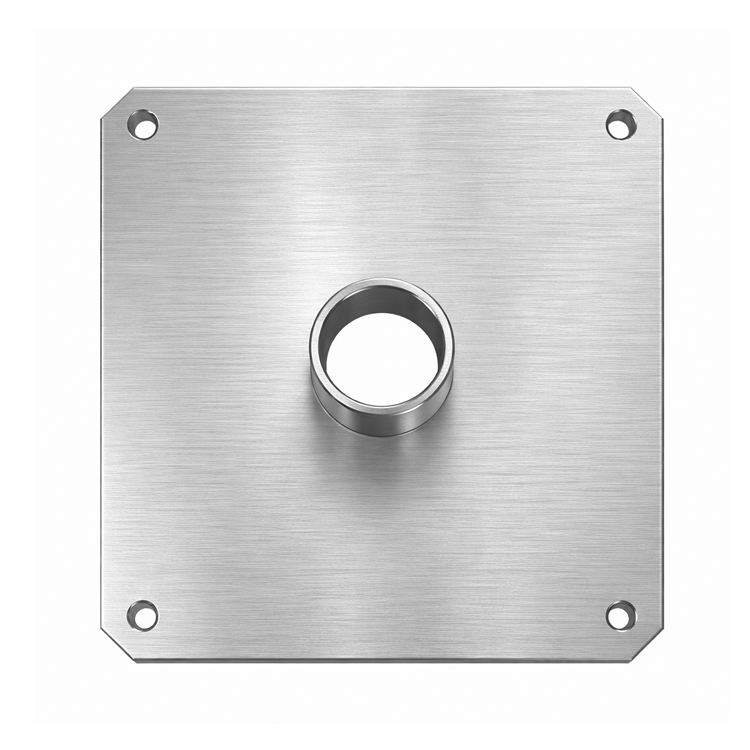

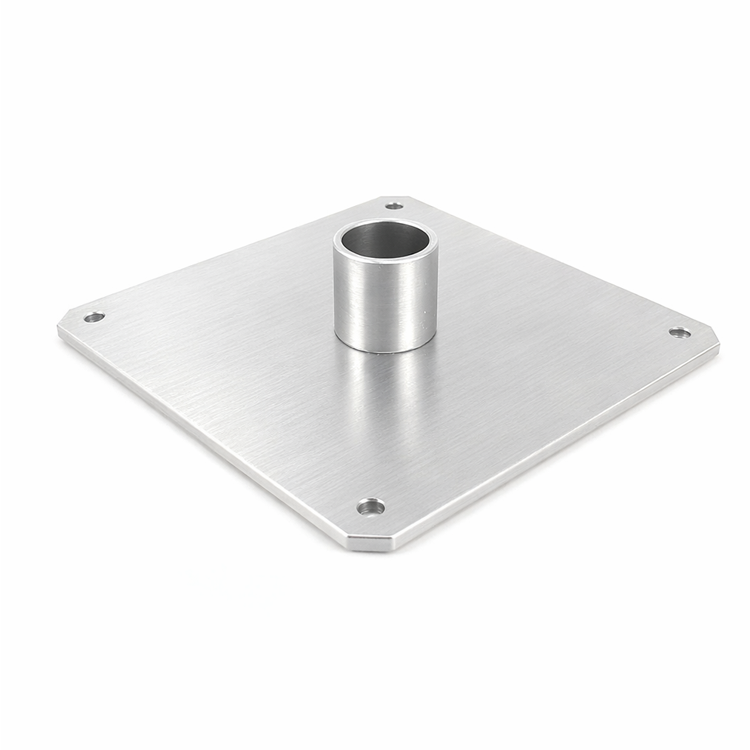

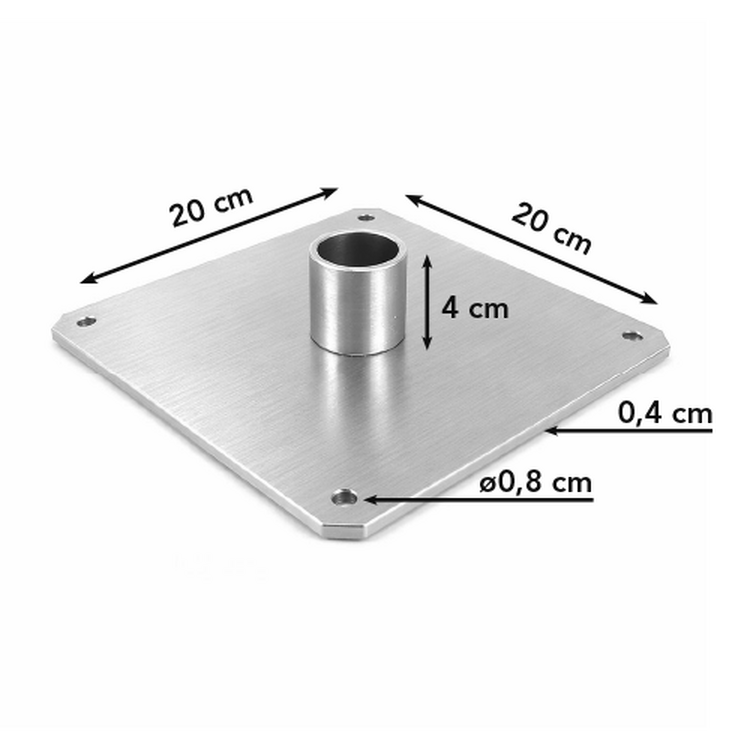

Thanks to the large surface area of the sheet pile plate (20 x 20 x 0.4 cm), an advertising frame can be easily positioned on a sheet pile façade, which is often not flat.
A small tube (4 cm) is welded onto the panel, to which a standard short T-piece (type 2) can be attached. The panels are available for tube couplings with diameters of 42.4 mm (D) and 48.3 mm (E).

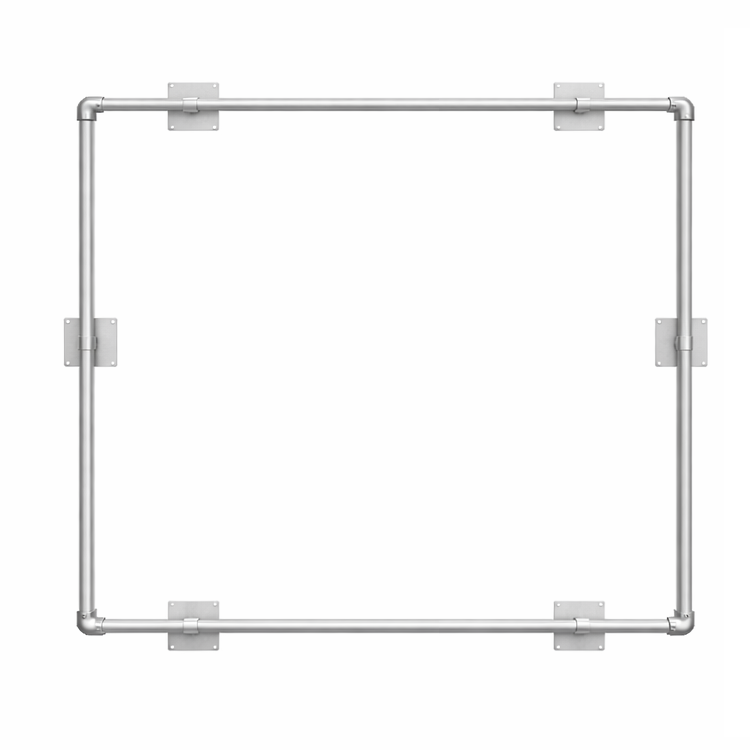

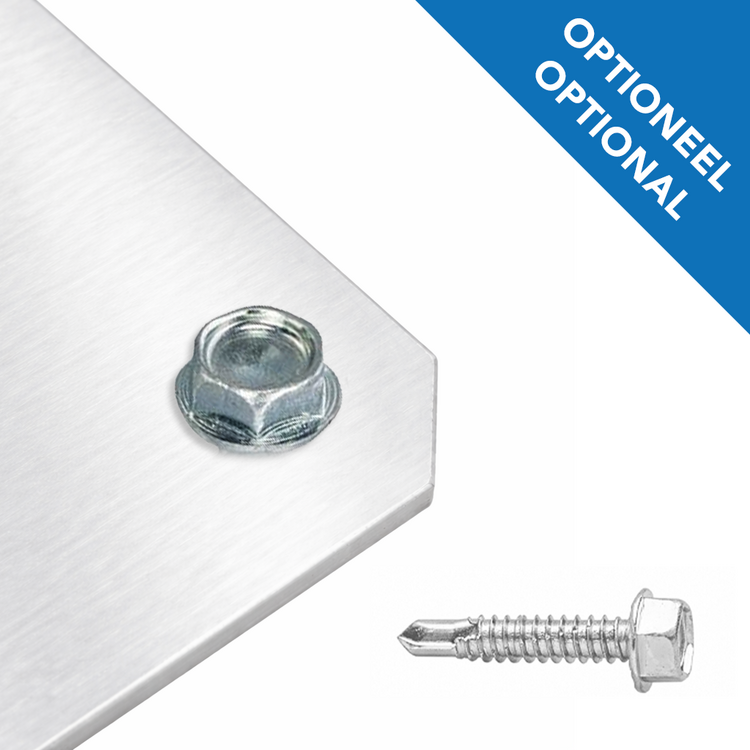

If you purchase a complete sheet pile frame, the necessary self-tapping screws are supplied as standard. For individual sheet pile plates, these screws can be ordered as an optional extra (4 per plate), so that you have everything you need for installation straight away.

In addition to the standard version, the sheet piles are also available in a matt black finish (RAL 9005), ideal for applications where appearance is just as important as functionality.
