9030-A3 | 9030-A2 | 9030-A1 | 9030-A0 | 9030-B2 | 9030-B1 | |
---|---|---|---|---|---|---|
System specifications | ||||||
Type | Mitred Corners | Mitred Corners | Mitred Corners | Mitred Corners | Mitred Corners | Mitred Corners |
Weight (kg) | 1 | 1.4 | 2 | 4.9 | 2 | 3.3 |
Color | Silver | Silver | Silver | Silver | Silver | Silver |
Material | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum |
Size | A3 | A2 | A1 | A0 | B2 | B1 |

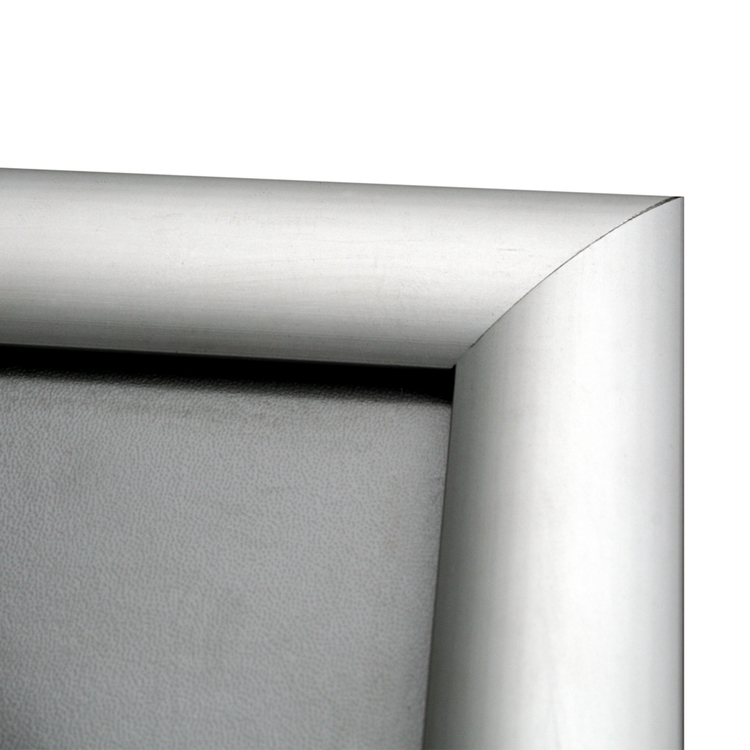

Corner | Mitred | Mitred | Mitred | Mitred | Mitred | Mitred |

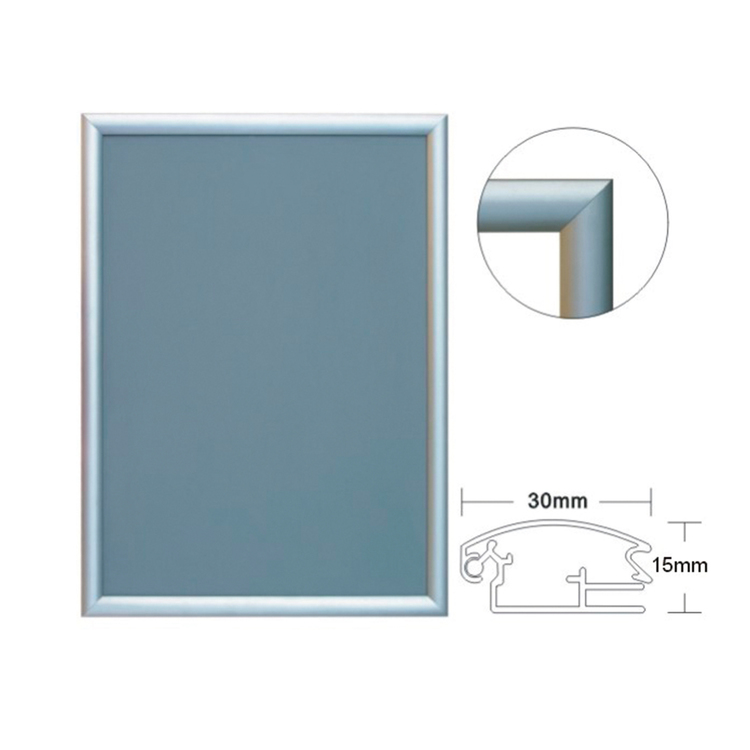

Profile (mm) | 30 | 30 | 30 | 30 | 30 | 30 |
Waterproof | No | No | No | No | No | No |
Print specifications | ||||||
Visible Size Width (mm) | 282 | 405 | 579 | 826 | 485 | 685 |
Visible Size Height (mm) | 405 | 579 | 826 | 1174 | 685 | 985 |
Total Size Width (mm) | 294 | 420 | 594 | 841 | 500 | 700 |
Total Size Height (mm) | 420 | 594 | 841 | 1189 | 700 | 1000 |
Visible printsides | 1 | 1 | 1 | 1 | 1 | 1 |
Exchangable | ||||||
Specifications insert | ||||||
Anti-Reflective | ||||||
UV-resistant | ||||||
Case specifications | ||||||
Kind of case | Box | Box | Box | Box | Box | Box |
Specifications individually packaged box | ||||||
Individually packaged | ||||||
Width (cm) | 35 | 50 | 64 | 88.5 | 55.5 | 74.5 |
Height (cm) | 47 | 65.5 | 89 | 123.5 | 75.5 | 104.5 |
Depth (cm) | 2.5 | 2.5 | 2.6 | 2.2 | 2.3 | 2.5 |
Masterbox specifications | ||||||
Number of items in masterbox | 20 | 10 | 5 | 5 | 10 | 5 |
Weight (kg) | 19.1 | 15.7 | 13.2 | 22.8 | 24.8 | 17.7 |
Width (cm) | 49 | 52.5 | 65 | 90 | 57.5 | 77.5 |
Height (cm) | 60 | 68 | 90 | 126 | 77.5 | 107.5 |
Depth (cm) | 37 | 31 | 15.5 | 15.5 | 31 | 15.5 |
General additional specifications | ||||||
Installation Time (min) | 1 | 1 | 1 | 1 | 1 | 1 |
Warranty | 1 year | 1 year | 1 year | 1 year | 1 year | 1 year |
Lockable | No | No | No | No | No | No |
