11900

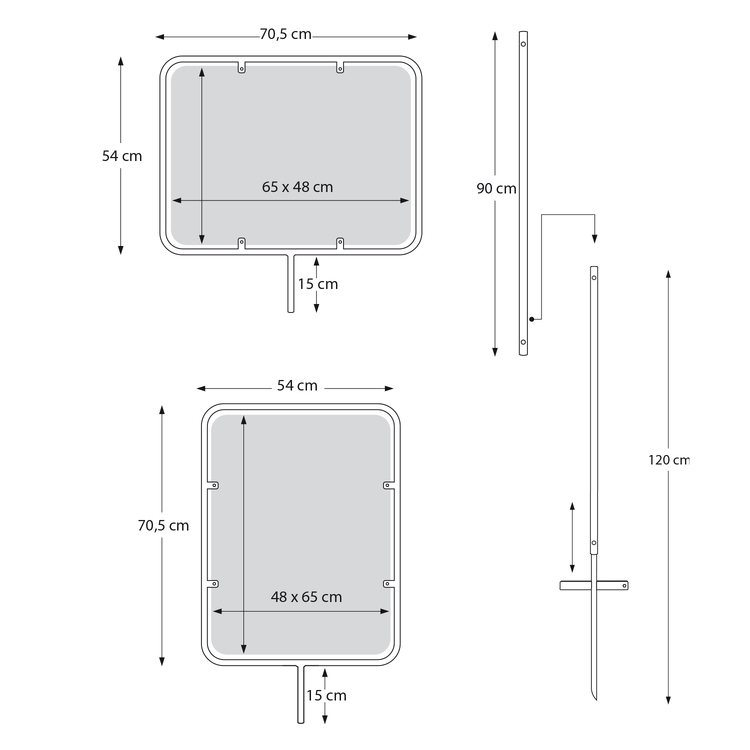

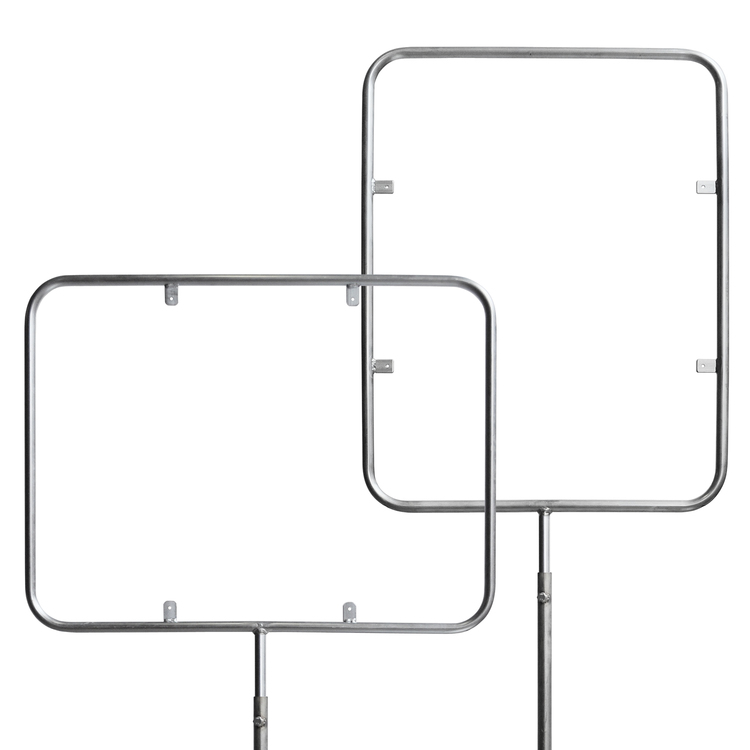

This broker sign consists of 3 parts: the plate holder, intermediate post and the bottom part. A very simple solution to place a board in a soft surface. The length of the upright is variable because the parts are pushed over each other. They are fastened together with a screw (the adjusting screws are included). The board can be attached to the 4 tabs. Fasteners are not included.

● Diameter screw hole plate mounting: 4.5 mm
● Diameter frame / board holder: 18 mm
● Intermediate dimensions: Length 90 cm. Diameter 22 mm
● Dimension bottom piece: Length 120 cm. Diameter 16 mm
● Dimensions of the upright: Adjustable from approx. 100 to 150 cm
● Package dimensions 72 x 22 x 106 cm

Broker sign (Landscape) - board size: W 650 x H 480 mm
Broker sign (Portrait) - board size: W 480 x H 650 mm

Note: corners must be rounded.
  11900 11950
System specifications
Type Broker Sign Broker Sign
Weight (kg) 5 5
Material Steel Steel
Shape Landscape Portrait
Size Landscape Portrait
Corner Round Round
Print specifications
Visible Size Width (cm) 650 480
Visible Size Height (cm) 480 650
Case specifications
Kind of case Box Box
General additional specifications
Warranty 1 year 1 year
